Osco 52


Osco 52

Osco 52

Description

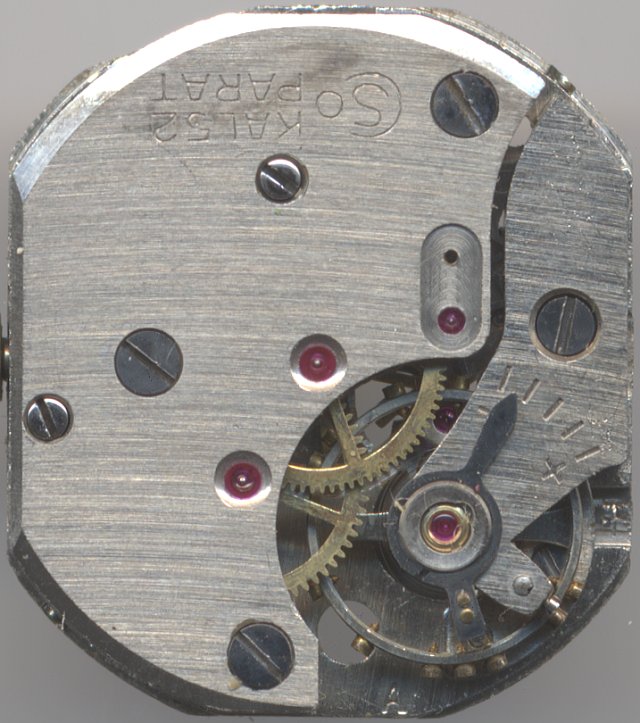

This rather small and old movement from the manufactury of Otto Schlund in Pforzheim is already equipped with a direct driven center second hand and a shock protection system. Nice to see is the screw balance and the long regulator for the hairspring. Not so nice is the simple rocking bar mechanism.

Osco 52 dial side

Osco 52 dial side

Technical data

Manufacturer:Osco
Caliber:52
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): ?
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center minute wheel
Winding mechanism:rocking bar winding system
Setting lever spring:3 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:18000
Size:8 3/4 x 10'''
Literature: Flume: 1952 36

Usage gallery

Osco Parat gents watch

Osco Parat gents watch

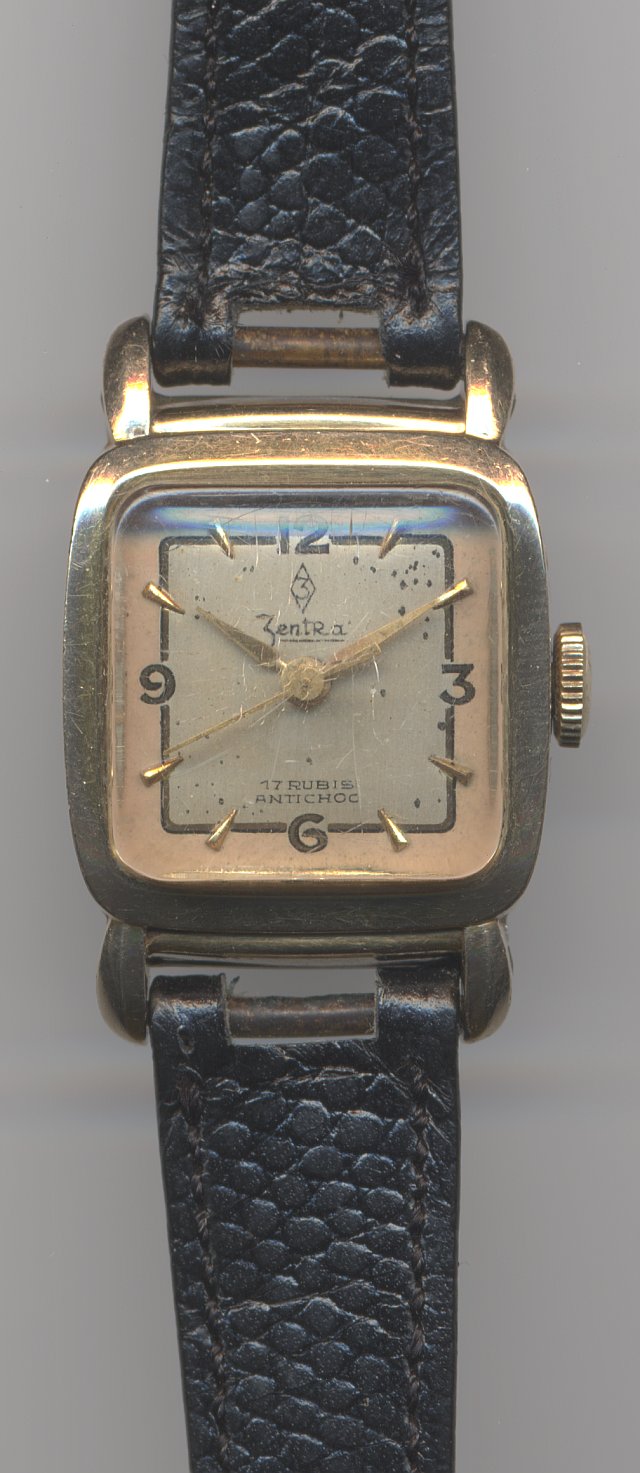

ZentRa ladies' watch

ZentRa ladies' watch
