Osco 1060


Osco 1060

Osco 1060

Description

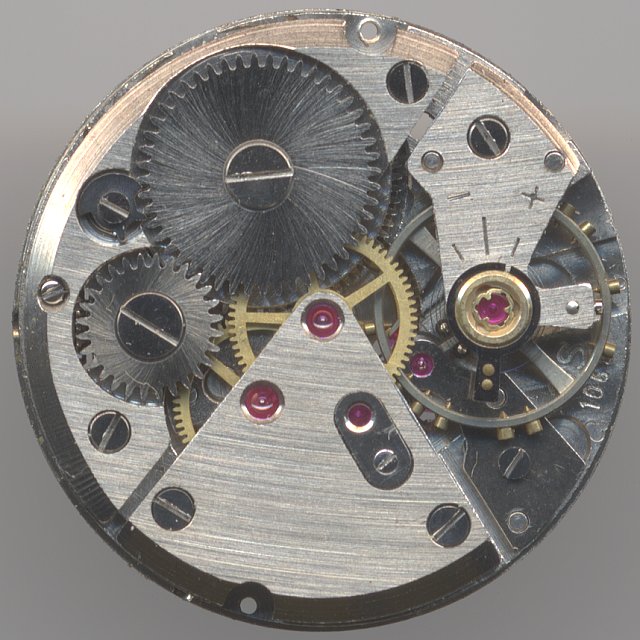

The 10 12 ligne Osco Caliber 1060 is a very classical constructed handwinding movement. The screw balance with its two extremely thin legs is secured in two KIF Trior shock protecting systems, and should allow good precision results, which can be verified with the directly driven center second hand. Furthermore, the anchor wheel runs within two bearings with cap jewels. This might also improve the precision and longevity.

The good impression of the movement side continues on the dial side: The Osco 1060 does not use a rocking bar winding mechanism, as most other german movements do, but uses a real yoke winding mechanism. Additional to that, there’s a true speciality on this movement: The changing wheel is closed on the top side. This is rather unique, but if has got any advantages - I don’t know…

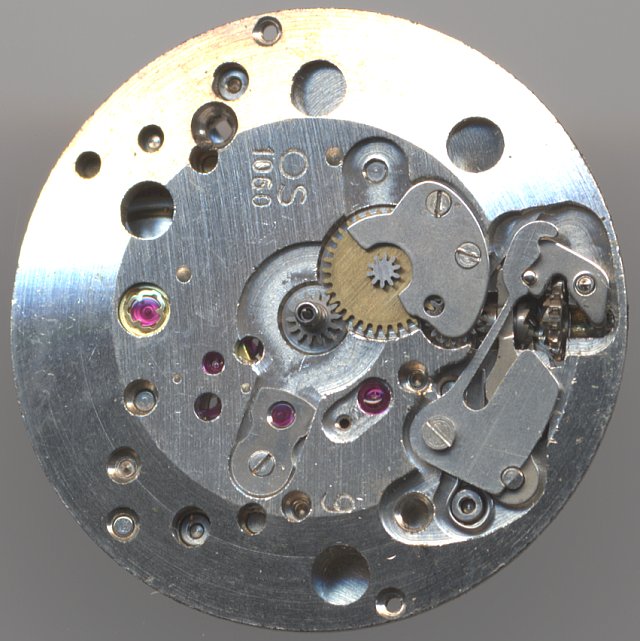

Osco 1060 dial side

Osco 1060 dial side

Technical data

Manufacturer:Osco
Caliber:1060
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): KIF Trior
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:18000
Size:10 1/2'''
Literature: Flume: 1962 7

Usage gallery

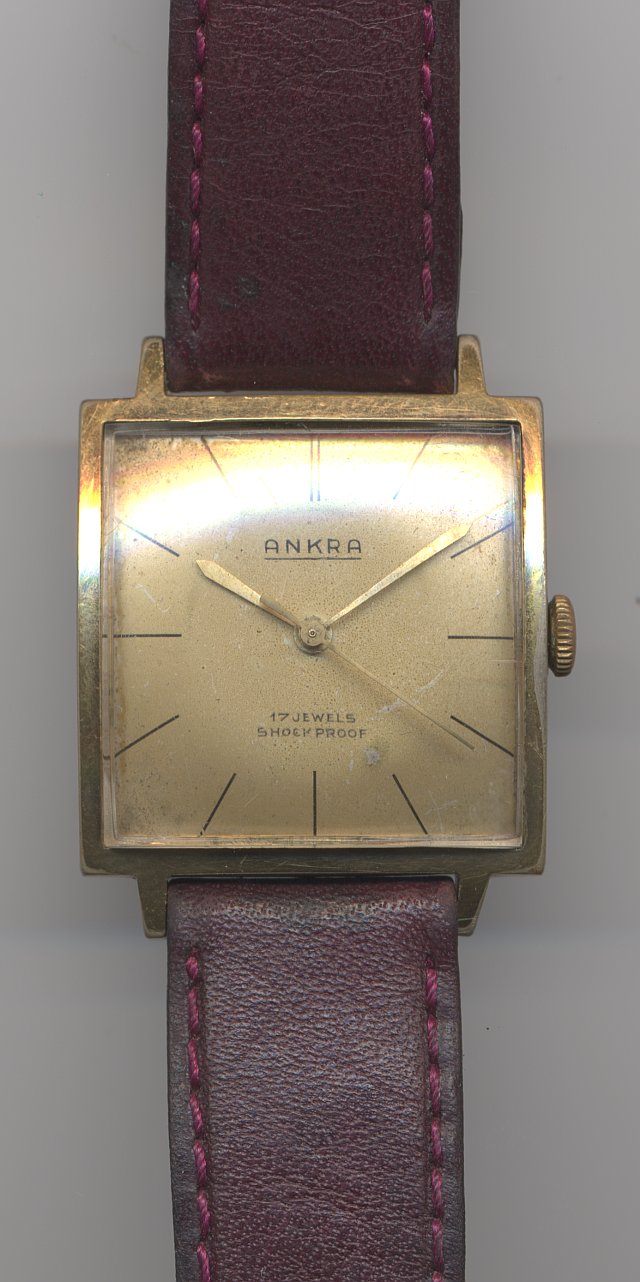

Ankra gents watch

Ankra gents watch
