Rego 180


Rego 180

Rego 180

Description

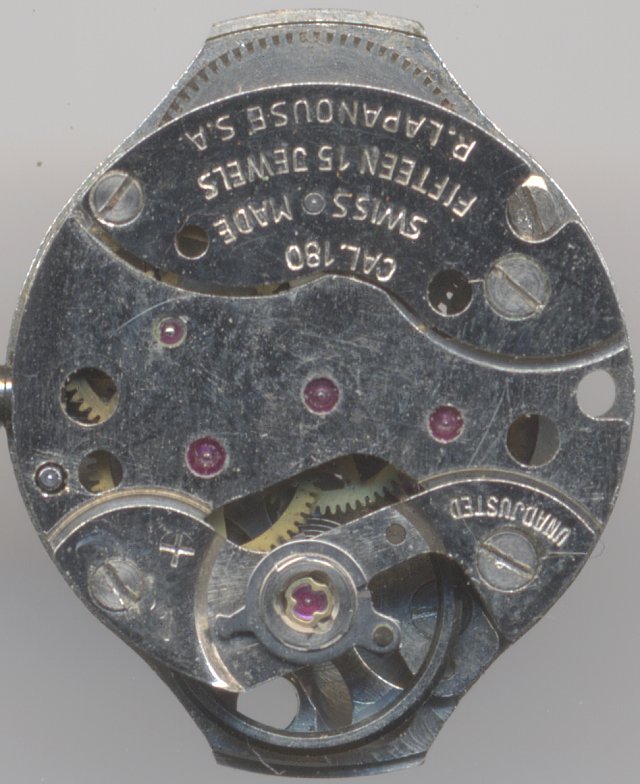

A very specially formed pin lever movement is the Rego caliber 180. It consists of a round shape, which is extended on top and bottom for space for balance and mainspring. A simple, but genious idea!

From the construction, it is a very elaborate pin lever movement: It has got a balance bridge with a short regulator arm, a KIF Protechoc shock protection system and all gears beared in synthetic rubies.

The rocking bar winding mechanism is located under the dial. The shape of the stop click is remarkable, since it even contains its own spring.

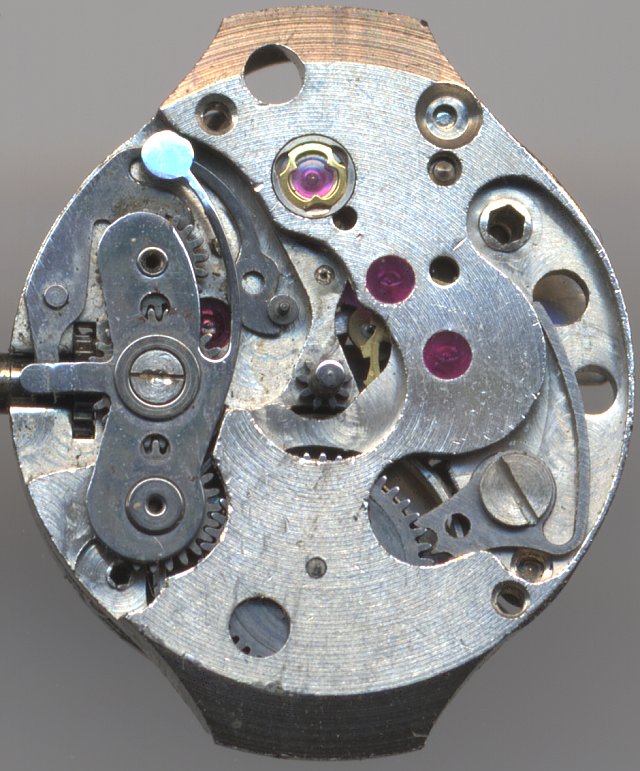

Rego 180 dial side

Rego 180 dial side

Technical data

Manufacturer:Rego
Caliber:180
Number of jewels:15
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): KIF Protechoc
Balance bearing / direction hairspring:Bridge
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:5 hole(s)
Functions:hour, minute
A/h:18000
Size:6 3/4 x 8 1/4'''
Literature: Flume: 1962 34
