ZIM 2608


The ZIM 2608 is a quite old and unusual handwinding movement of russian production, which was equipped with and direct center second and therefor builds really high.

Additionally, the specimen shown here has got a very nice stripes decoration on the plates, while elsewhere it looks pretty crude.

Video on YouTube

The caliber 2608 bases on the construction of the familiy relative ZIM 2602. For the direct driven center second, the fourth wheel was removed from position “6” and the third wheel was set further distant from the center.

Since fourth and third wheel are now located above the winding plate, the escapement wheel train had to be prolonged, which all leads to a very high building movement.

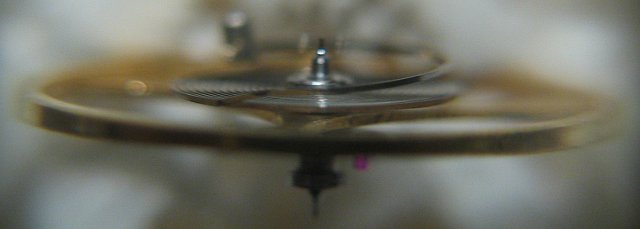

ZIM 2608: Breguet hairspring

Breguet hairspring

Like the ZIM 2602, this movement also uses a three leg ring balance with a Breguet hairspring. The balance is not yet shock protected and the hairspring key doesn’t have a long regulator arm. So, this movement was build cheap and expensive the same instance.

ZIM 2608: ineffective hairspring key

ineffective hairspring key

Pretty funny: The “watchmaker”, who put hands last on this movement, managed to set the hairspring key wrongly, without any function, onto the balance cock.

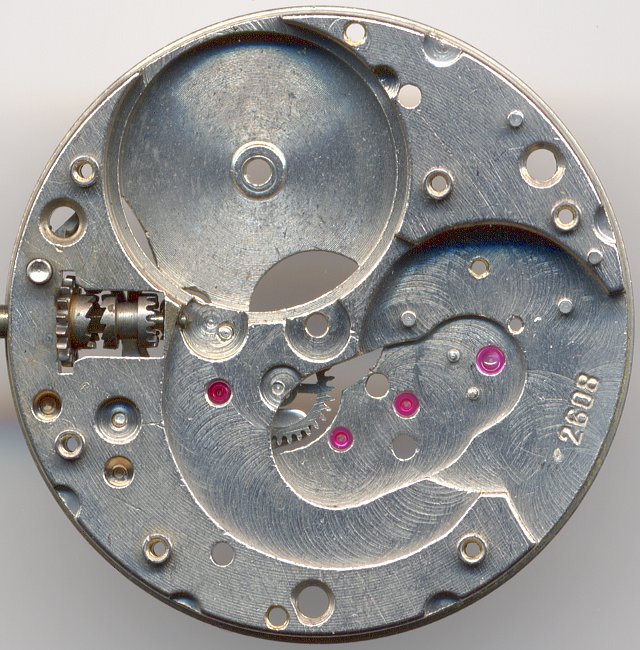

ZIM 2608: base plate

base plate

The ZIM 2608 beats with 18000 alternations per hour and contains a pallet lever.

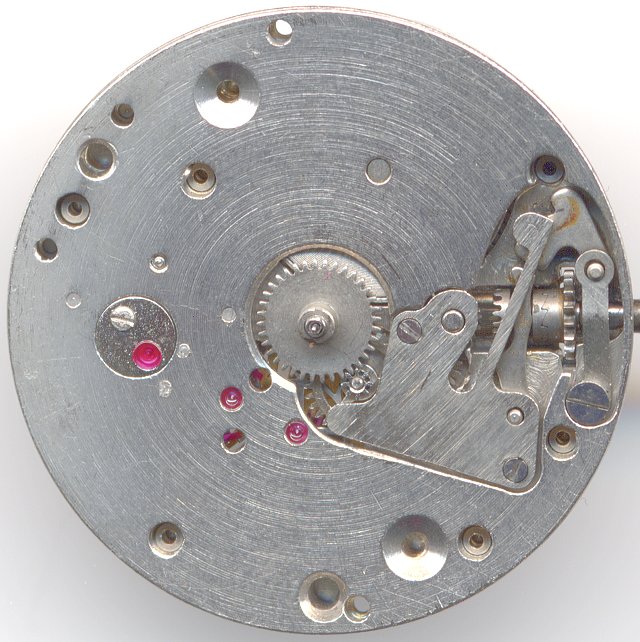

ZIM 2608: ZIM 2608 dial side

ZIM 2608 dial side

On the dial side, you see the yoke winding system besides the otherwise quite empty plate.

Technical data

Caliber base:ZIM 2602
Size:11 1/2''' (measured: 25,4mm)
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Breguet type hairspring, hairspring key
  • lever
  • escape wheel, seconds wheel, center minute wheel
  • center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
  • SCD (direct center seconds)

Usage gallery

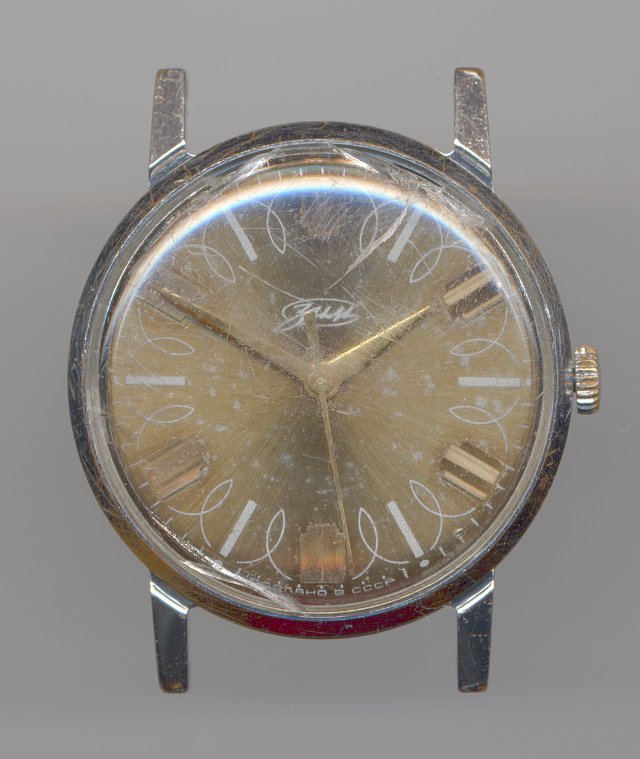

ZIM 2608: ZIM gents watch

ZIM gents watch

Caliber Family
ZIM 2602
