Brac 37

Description

The Brac caliber 37 is a classy, jewel-less pin-lever movement.
Surprisingly, it is equipped with a yoke winding mechanism, which is unusual for movements of this low class.

Nevertheless, many things of the construction are still the same, as on Roskopf watches, e.g. the large click spring and the indirectly driven hands as well as the low beating rate, which is below 5 A/s.

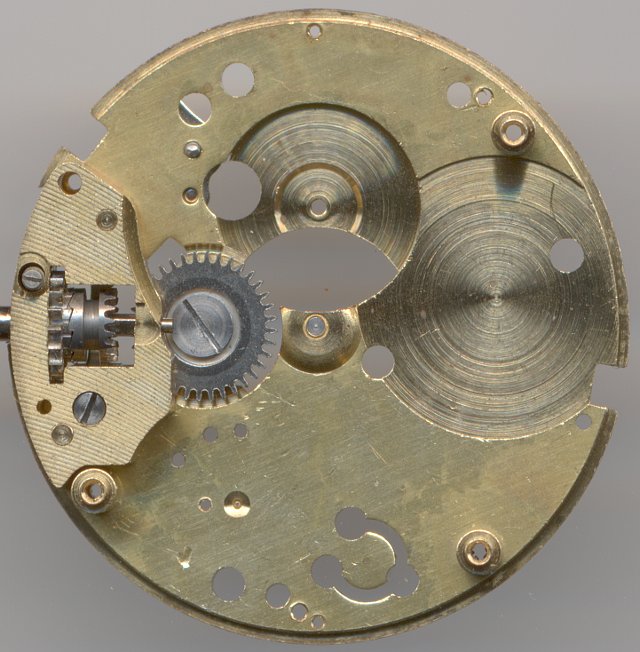

main plate

main plate

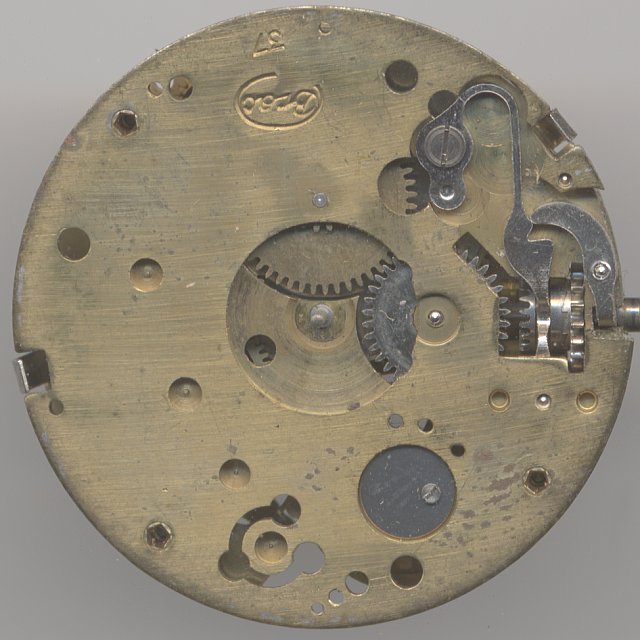

Brac 37 dial side

Brac 37 dial side

Technical data

Manufacturer:Brac
Caliber:37
Number of jewels:0/1
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Functions:hour, minute
A/h:17280
Size:13'''
Literature: Flume: 1952 24

Usage gallery

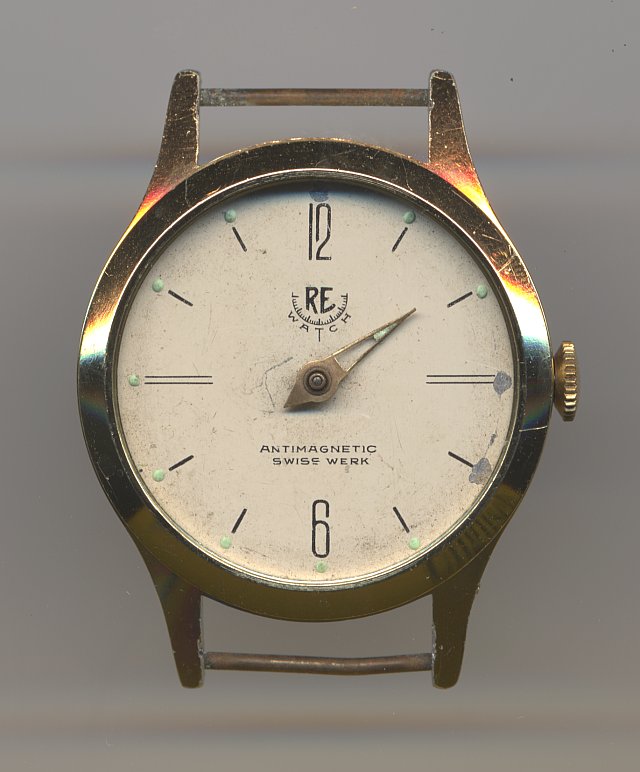

ReWatch mens' watch

ReWatch mens' watch

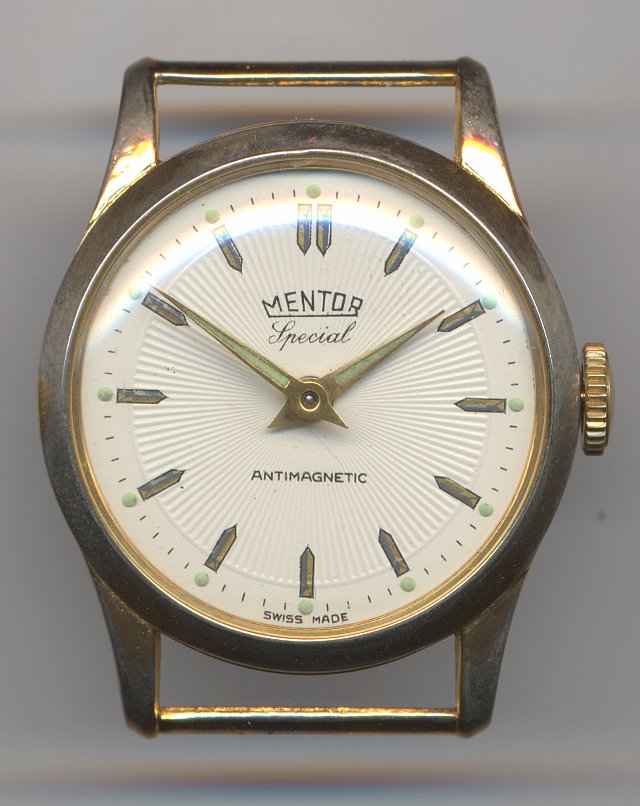

Mentor Special mens' watch

Mentor Special mens' watch
