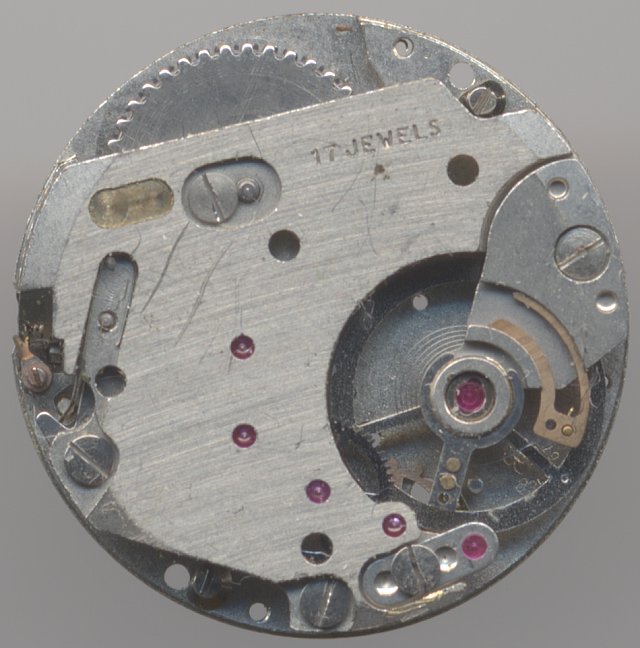

EB 8350-67

Description

The Bettlach caliber EB 8350-67 is a mid-size ladies’ watch pin-lever movement.

As most of the EB movements, this movement also has got some constructive specialities: The most noticeable thing is the moveable hairspring stud, which is made of an U-shaped piece of metal, which is inserted into the balance cock. This way, it can be easily moved.
The 8350-67 also uses a yoke winding system, which is located in the inside of the movement and hardly visible at all.

Like all EB movements, this one uses a pin lever, too. Here, the lever axle is beared in two cap jewels to achieve the important number of seventeen jewels. The minute wheel is located decentrally to allow larger diameters of the balance and mainspring. The hands are driven indirectly by the mainspring on the dial side.

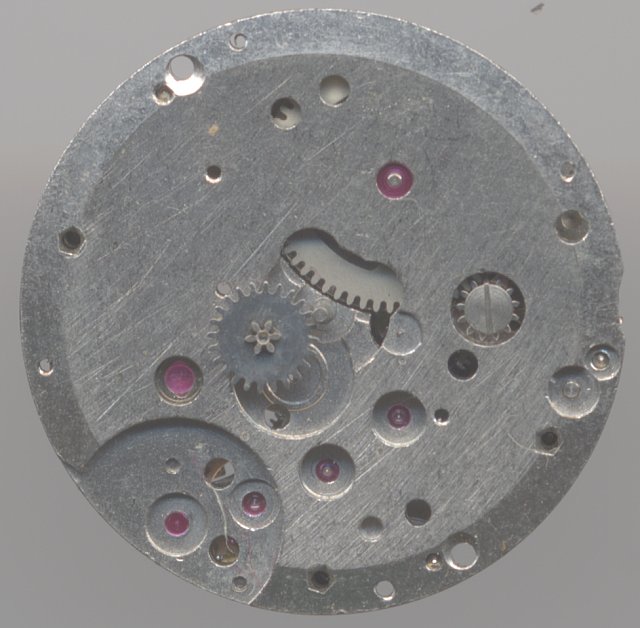

EB 8350-67 dial side

EB 8350-67 dial side

Technical data

Manufacturer:EB
Caliber:8350-67
Number of jewels:17
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Functions:hour, minute
A/h:18000
Size:8 3/4'''
Literature: Flume: K3 -

Usage gallery

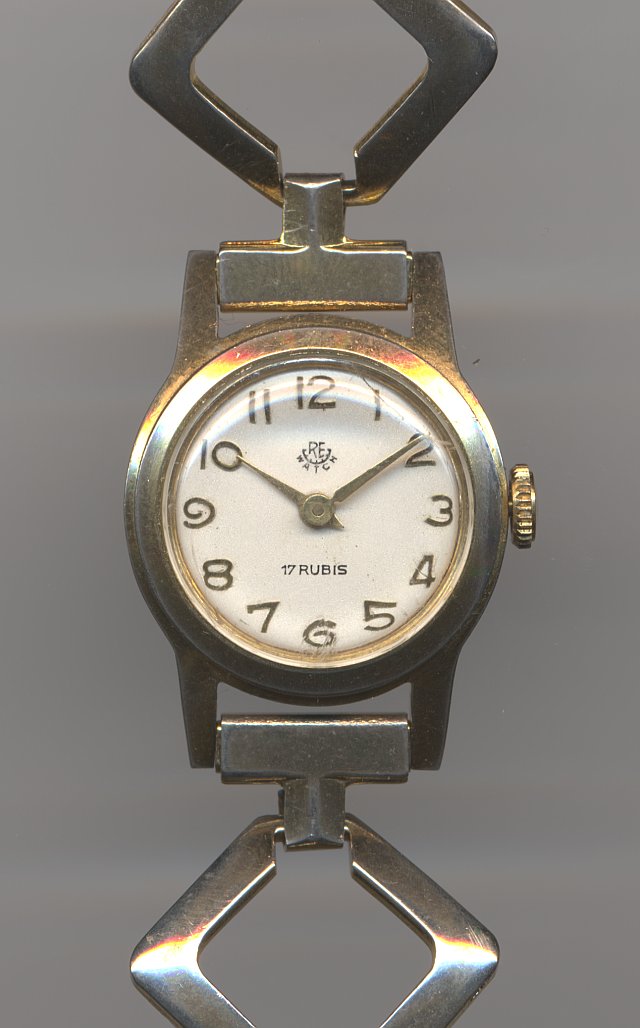

Re-Watch ladies' watch

Re-Watch ladies' watch
