Eppler 2


Eppler 2

Eppler 2

Description

The Eppler calibe 2 is a typical representative of the 10 12 ligne pin lever movements, which were very popular especially after WW II in cheap(est) wristwaches.

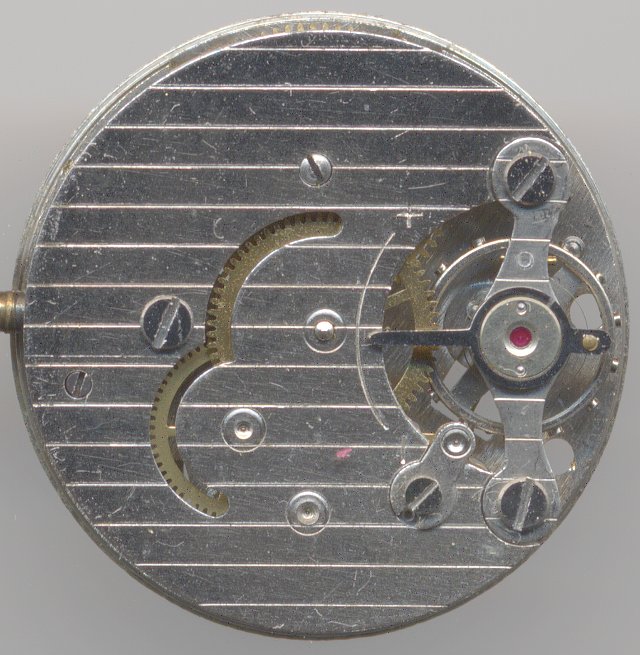

It is a little bit different than most of its colleagues, since it uses a balance bridge instead of a balance cock, and additionally, the balance is beared in four rubies and imitates a screw balance. The “screws” are half-circles, fixed to the balance and not adjustable at all.

A noteable detail is, that the lever has got a counterweight below the escapement wheel.

On the dial side, there’s a rocking bar winding mechanism and the locking mechanism.

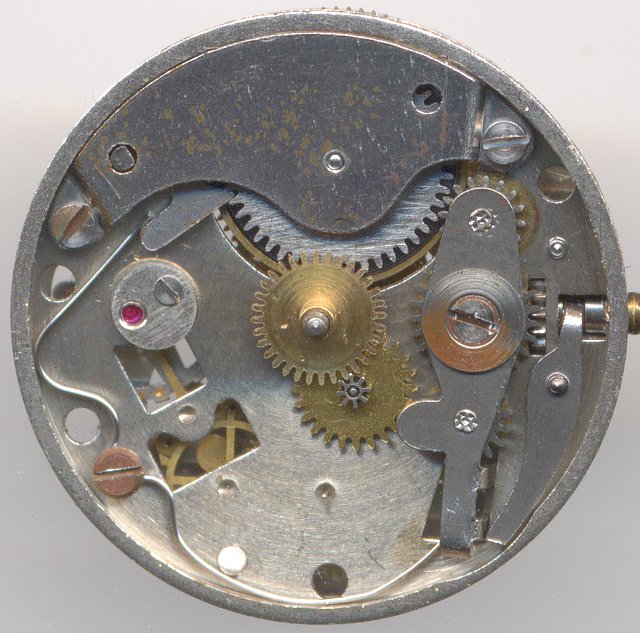

Eppler 2 dial side

Eppler 2 dial side

Technical data

Manufacturer:Eppler
Caliber:2
Number of jewels:4
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Bridge
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole(s)
Features:s
Functions:hour, minute, decentral second
A/h:18000
Size:10 1/2'''
Literature: Flume: 1957 43

Usage gallery

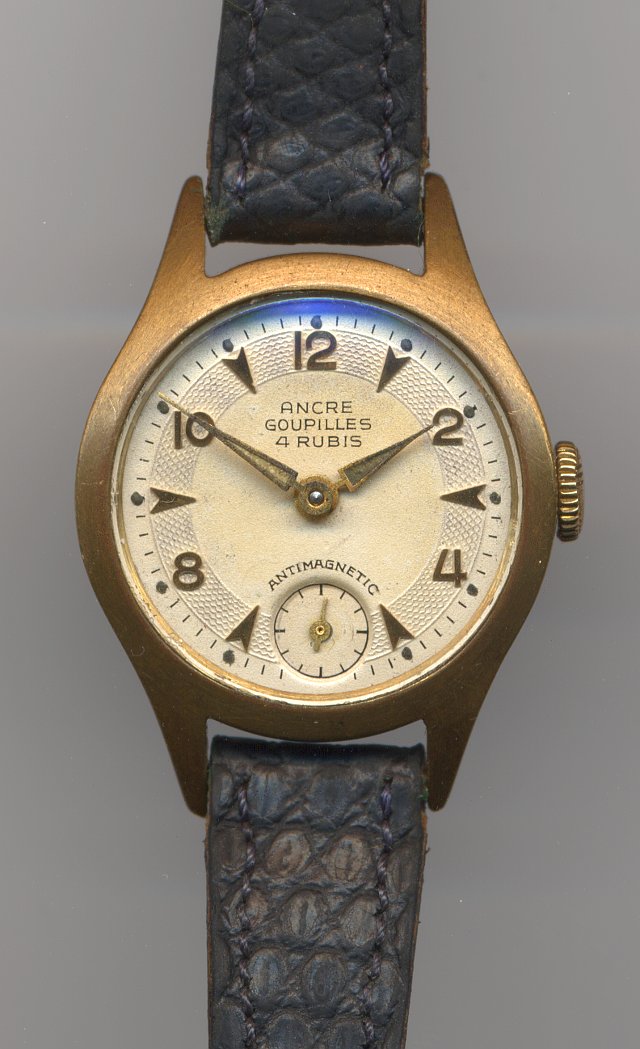

Ancre Goupilles ladies' watch

Ancre Goupilles ladies' watch
