Eppler 21


Eppler was, as described on the caliber 17 a manufacturer of cheapest pin lever movements. Only a few movement, which based on then 10 1/2 ligne construction, were of a better quality, such as the rare caliber 21 described here.

The Eppler 21 has got a shock protected balance, which runs in two Rufa-Anti-Shock systems. The hairspring is properly fixated and not glued and even the hairspring regulator is of good quality. The escapement is a true pallet anchor escapement and drives a fully jewelled movement. With 17 jewels (2 of them are cap jewels) it is almost equal to a “good” movement, only the large height indicates the origin of that movement.

On the dial side, there’s still the rocking bar winding mechanism, but at least the minute train and exchange wheel are made of metal and no longer of plastics.

It is really astonishing, how an ugly (pin lever) duckling can be transformed into a nice (pallet anchor) swan - it’s a pity, that this is such a rare species.

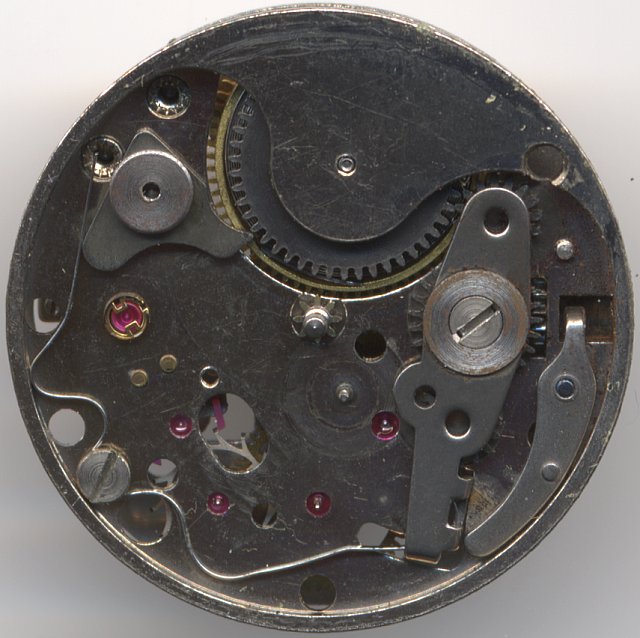

Eppler 21: Eppler 21 dial side

Eppler 21 dial side

Technical data

Caliber base:Eppler 16
Size:10 1/2'''
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Rufa-Anti-Shock
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
References: Flume: K3 34

Usage gallery

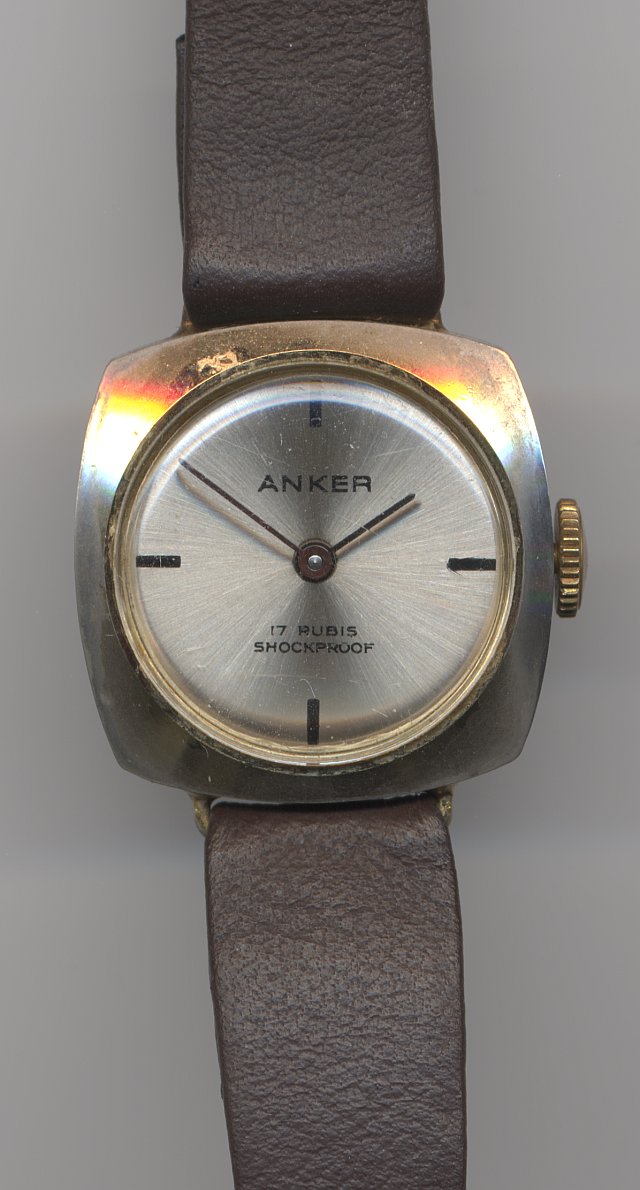

Eppler 21: Anker ladies' watch

Anker ladies' watch

Caliber Family
Eppler 16
