Langendorf 5106


Langendorf 5106

Langendorf 5106

Description

The Langendorf 5106 is one of the latest cylinder movement, which was apparently released in the mid or ending 1950ies.

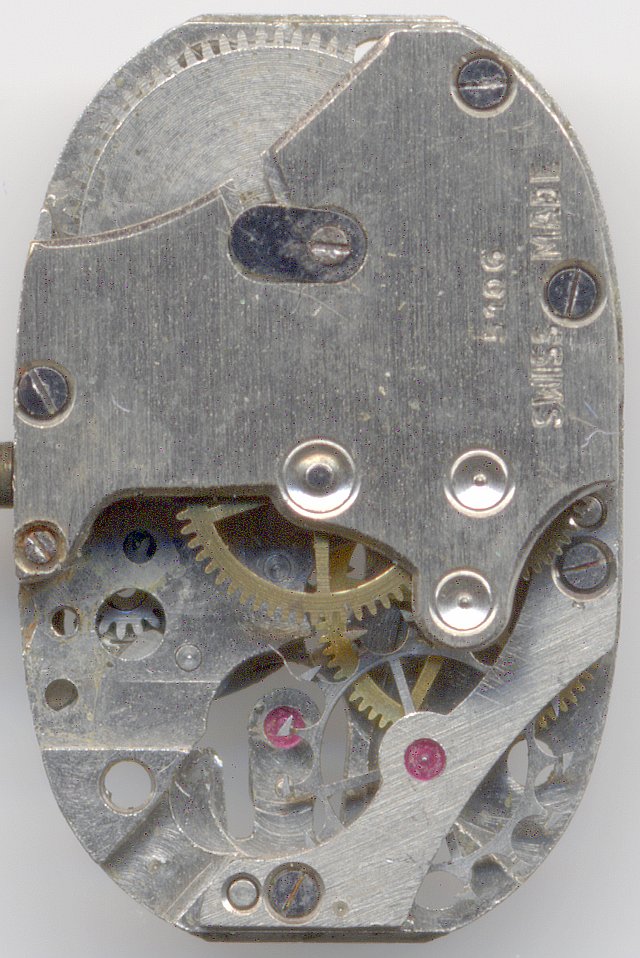

It’s already quite modern constructed and no longer reminds of a pocket watch movements. The cylinder wheel is beared under a somewhat crude bridge, while all other gears, including the mainspring barrel (which can be released separately) are below a second bridge with angeled borders. There are only four jewels in this movement, two on the balance (with metal caps) and two on the cylinder wheel.

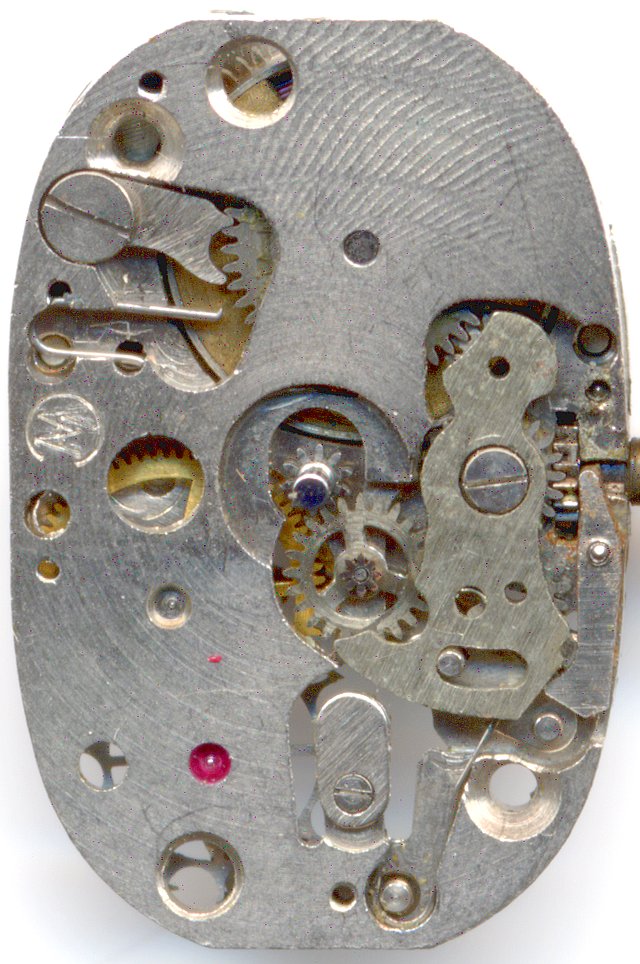

Langendorf 5106 dial side

Langendorf 5106 dial side

On the dial side, you see the modern made rocking bar winding mechanism and the safety catch, which is pretty well made with click spring and click ratchet.

Technical data

Manufacturer:Langendorf
Caliber:5106
Number of jewels:4
Escapement:Cylinder
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Construction:
  • escape wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:5 hole(s)
Functions:hour, minute
A/h:18000
Size:5 1/4''' (measured: 12,8 x 18,9mm)
Literature: Flume: K2 -
