Description

This caliber 1411 of Ronda S.A. was made in the 70ies or 80ies and is a very simple pin lever movement with only one jewel (Ellipse). The balance in beared in two plastic(!) bearing, whose red color shall remind of synthetic jewels. It is easy to understand, that this movement won’t last very long and won’t be ultimately precise, too.

It is the reduced version (no center second indication) of the base caliber Ronda 1413.

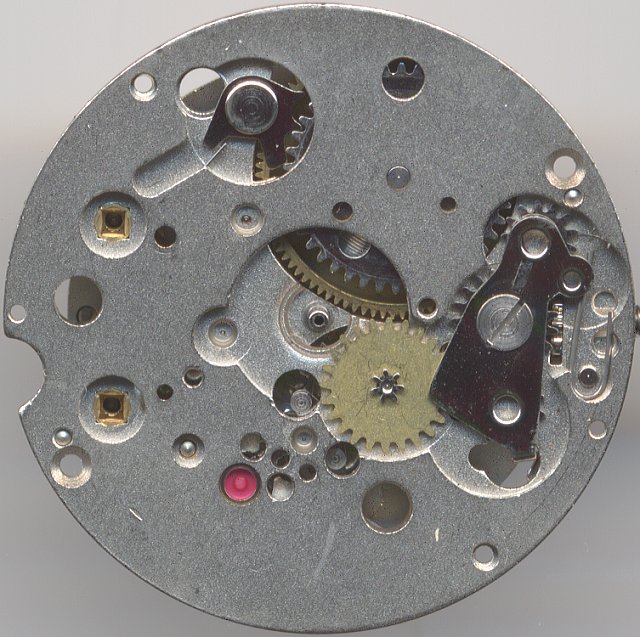

Ronda 1411 Zifferblattseite

Ronda 1411 Zifferblattseite


Technical data

Manufacturer:Ronda
Caliber:1411
Number of jewels:1
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
Functions:hour, minute
A/h:21600
Size:10 1/2''' (measured: 23,6mm)

Usage gallery

Parker 2000 ladies' watch

Parker 2000 ladies' watch
