DuRoWe 7525 (INT)


DuRoWe 7525 (INT)

DuRoWe 7525 (INT)

Description

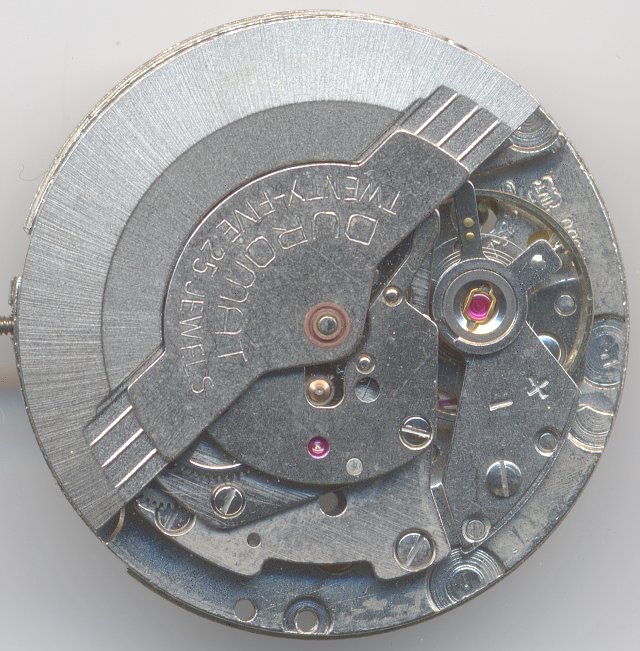

“Duromat” - this sounding name was for many years a synonym für reliable selfwinding movements made in Germany.

The caliber 7525 shown here was made in the early 70ies and therefor already belongs to latest movement families, but still uses the “Duromat” inscription on the rotor. The later models use a quarter-rotor, which is too small for any inscription.

movement without oscillating weight

movement without oscillating weight

The unidirectional winding Durowe 7525 beats with modern 21600 A/h and uses a three-leg balance, which runs in two inhouse Duroswing shock protection systems. It drives a conventional constructed pallet anchor movement with directly driven center second and center minute wheel.

timing mechanism (almost) without selfwinding mechanism

timing mechanism (almost) without selfwinding mechanism

On the dial side, there’s a very modern, instantly switching date mechanism with quickset mechanism by the mid crown position.

Of course, this movement has got a yoke winding mechanism - a further detail of that very well constructed Durowe caliber.

DuRoWe 7525 (INT) dial side

DuRoWe 7525 (INT) dial side

Technical data

Manufacturer:DuRoWe
Caliber:7525
Number of jewels:25
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Duro-Swing
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Features:SCI,QG,RDR,AUT
Functions:hour, minute, second, day, selfwinding
A/h:21600
Size:11 1/2'''
Production period:1972 - ????
Literature: Flume: K3 -
