Junghans J80/1 (680.70)

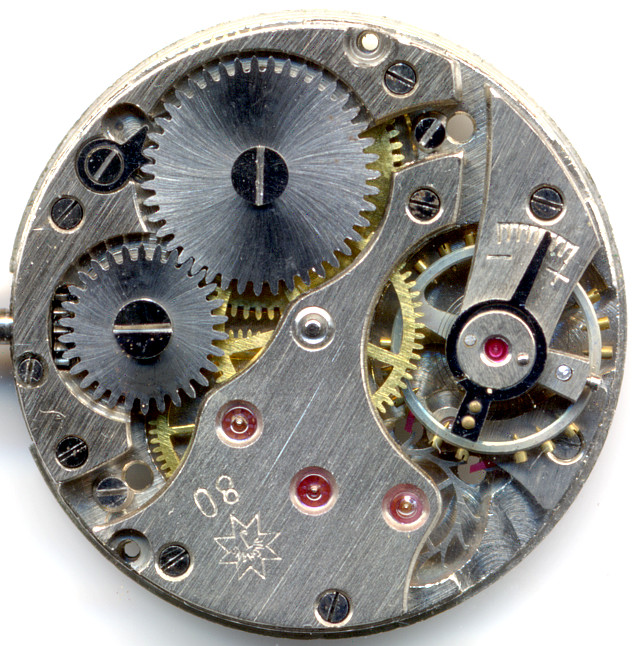

Description

In the early 1930ies, the Junghans caliber J80 debuted. It was one of their very first true inhouse wristwatch movement and was produced for about 20 years. Earlier versions had a seperate escape wheel cock, later versions, such as the J80/1 (which is only marked with “80”) has got the escape wheel bearing integrated into the gear train bridge.

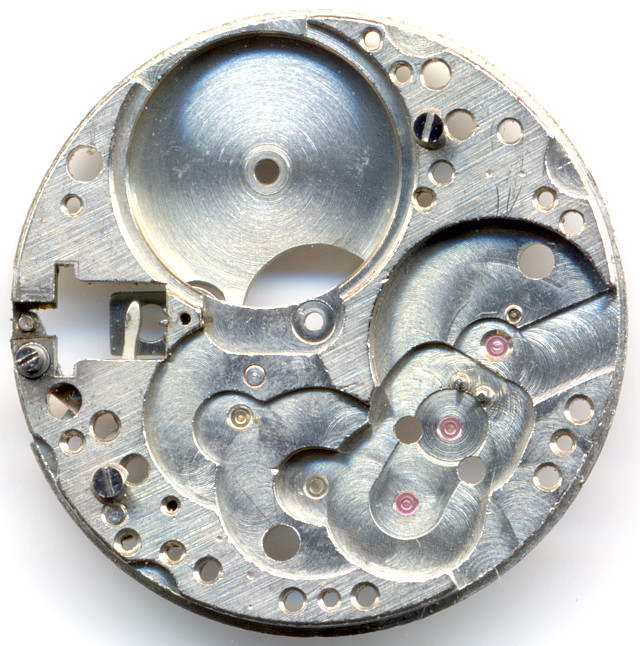

Junghans J80/1 (680.70): base plate

base plate

While the base plate is metal colored, it was brass colored in earlier versions. You can see, that it is a true pallet lever movement with all important bearings equipped with jewels, those of the fourth and third wheel made out of a transparent jewel.

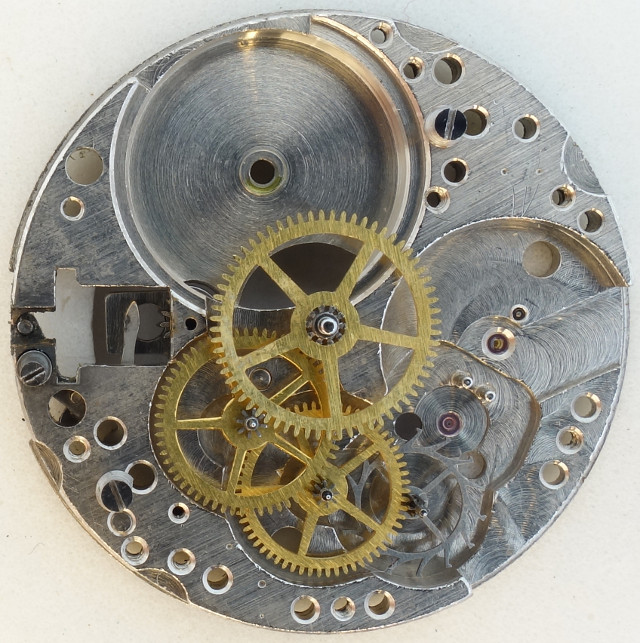

Junghans J80/1 (680.70): gear train

gear train

The J80/1 uses the standard gear train with a directly driven center minute wheel, followed by third wheel, seconds wheel (with decentral seconds hand) at 6 o’clock and finally the steel-made escape wheel.

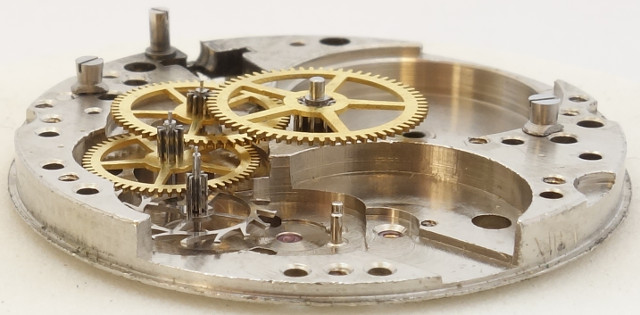

Junghans J80/1 (680.70): side view of the gear train

side view of the gear train

The not yet shock protected screw balance beats contemporarily slow with 18000 A/h and regulates a classical swiss-type pallet lever movement. Its frequency can be adjusted with a long regulator arm.

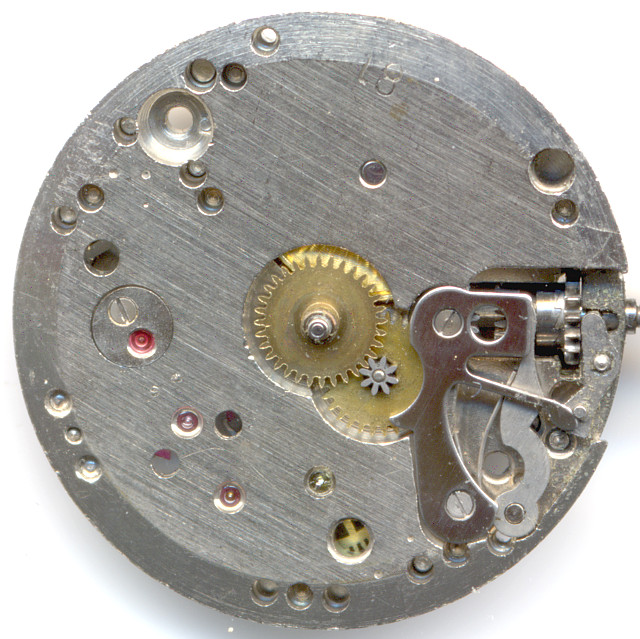

Junghans J80/1 (680.70): Junghans J80/1: Dial side

Junghans J80/1: Dial side

The most notable part of the dial side of the Junghans J80/1 is the setting lever spring with its almost rectangular end part. The rest of the dial side looks absolutely standard.

The caliber 80 proved to be such a reliable construction, that in the early 1950ies, it was even taken as base caliber for the first senfwinding movement of Junghans - the caliber J80/12.

Technical data

Manufacturer:Junghans
Caliber:J80/1 (680.70)
Size:10 1/2''' (measured: 23,3mm)
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:
  • s (decentral seconds)
Production period:1931 - 1949
References: Flume: 1947 31
Inventory number:18020

Usage gallery

Junghans J80/1 (680.70): Junghans gents watch

Junghans gents watch

Links

This movement is a kind donation from Katja. Thank you very much for supporting the movement archive!
