Description

The AS 1199 shown here is a high class pin lever movement, which actually did not exist. Why? It’s because in the literature, there exists only an EB 1199, which the note, that AS pin lever movements were produced by the Ebauches Bettlach (EB). The reason for that is, that (probably in the 1930ies) , there was a specialization within the Ebauches SA with the result, that pin lever movements, which were formerly produced by the AS, from then on were produced by the Ebauches Bettlach.

It looks, like this specimen was made in the short timespan, in which the AS made their own pin lever movements, or it was just a misprint.

The AS 1199 has got a diameter of 10 1/2 lignes and is a Roskopf construction, but it differs in some details from that construction type.

AS 1199: base plate

base plate

Die base plate shows, that it is a high class manual wind movement, although it was only a pillar construction. All important bearings are equipped with synthetic rubies, 15 in total.

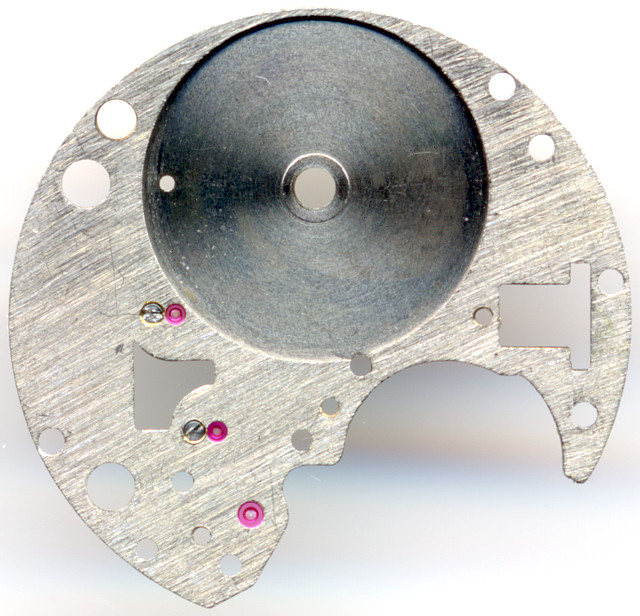

AS 1199: inside of the top plate

inside of the top plate

But even better: The movement side bearings of second and third wheel have cap jewels, which are bordered and bolted from the inside of the top plate. Aesthetically very impressive!

AS 1199: gear train

gear train

The AS 1199 has got the usual Roskopf gear train, which in contrast to the gear train of classical swiss lever movement, one transmission step was saved. The mainspring barrel is overdimensional large and reaches over the center of the movement. The following second and third wheel are also larger (and have more teeth) and finally the silver toned escapement wheel has got only 15 teeth instead of 18, which were standard on true Roskopf movements.

AS 1199: side view of the gear train

side view of the gear train

The indirectly driven center seconds wheel is located on the dial side. It is driven by its outer sprocket by the outer sprocked of the bottom located seconds wheel.

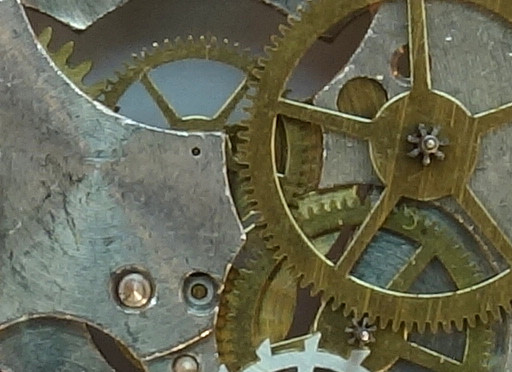

AS 1199: drive mechanism of the center second

drive mechanism of the center second

As escapement, a pin lever escapement is used, whose execution is visually and technically well made. You can see, how the lever was balanced:

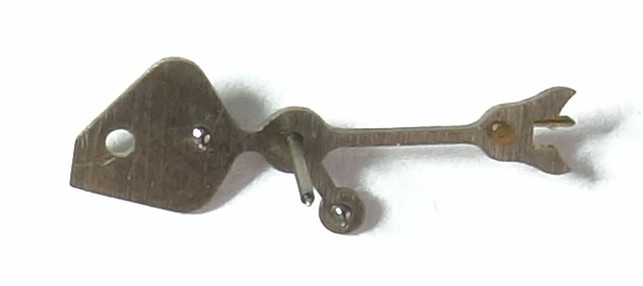

AS 1199: Lever

Lever

As said, the AS 1199 has got a pin lever escapement, whose screw-less anular ring balance beats with 18000 A/h, which is unusual for Roskopf movements, since they usually beat with 17280 A/h. Of course it is not yet shock protected, but at least, it has got a long regulator arm for adjustment of the frequency.

AS 1199: empty dial side

empty dial side

On the empty dial side, you can easily spot the yoke winding system - an indication for a movement of better quality.

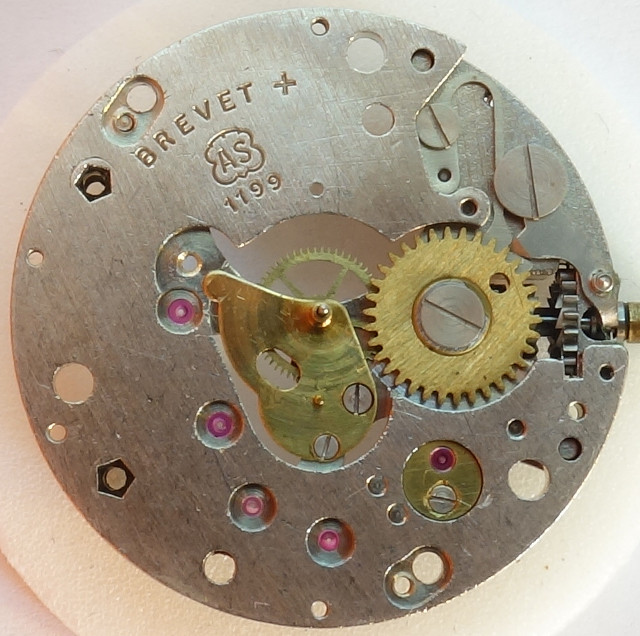

AS 1199: dial side with center seconds wheel

dial side with center seconds wheel

The center second indication is an own module with gear and plate, which is mounted on the dial side. Its axle carries the minute wheel, which means, that the time indication (minutes and hours) is also driven indirectly.

AS 1199: AS 1199: Dial side

AS 1199: Dial side

As common on Roskopf movements, the cannon pinion is driven by a moveable wheel on top of the mainspring barrel. Unlink on real Roskopf movements, the AS 1199 drives the hour wheel by an changer wheel and not by the double wheel on top of the mainspring barrel. This is a renunciation of the Roskopf construction and an indication of a modern constructed lever movement.

You can clearly see the “AS 1199” mark on the dial side. In literature, an AS 1199 does not exist, but only this movement as “EB 1199”, so the specimen shown here is a true rarity!

In the lab

The specimen shown here is in perfect condition, so it is probably NOS. Because of that, no service was made.

Timegrapher result

Of course, on a 70 year old movement, the oil has dried and so, the timegrapher results were quite poor - as expected. After a service, it should perform significantly better.

horizontal positions
dial up +12 s/d 231° 0.9ms
dial down +14 s/d 260° 0.4ms
vertical positions
crown right (12 up) -73 s/d 168° 0.3ms
crown up (3 up) -142 s/d 166° 0.3ms
crown left (6 up) -141 s/d 158° 1.3ms
crown down (9 up) -77 s/d 173° 1.1ms

Technical data

Manufacturer:AS
Caliber:1199
Size:10 1/2''' (measured: 23,2mm)
A/h:18000
Number of jewels:15
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
Construction type:pillar construction
Winding mechanism:yoke winding system
Features:
  • SCI (indirect center seconds)
References: Flume: (K1 1952 22)
Inventory number:17031

Usage gallery

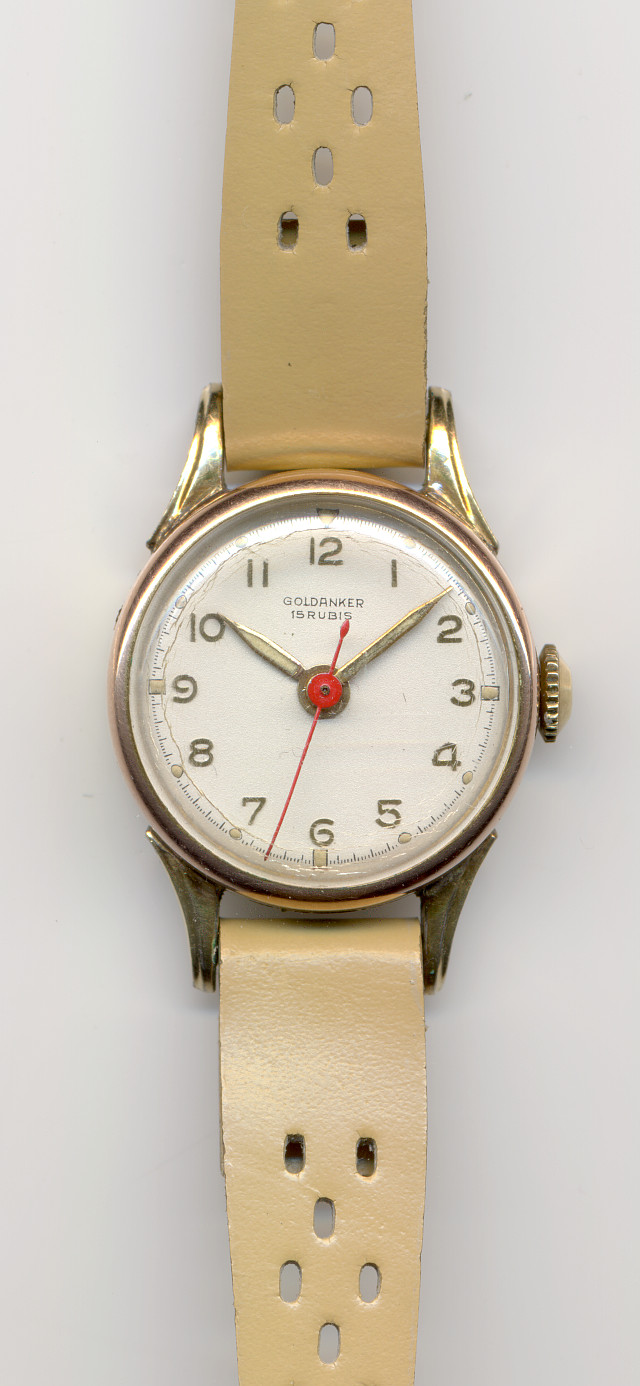

AS 1199: Goldanker ladies' watch

Goldanker ladies' watch
