AS 1759

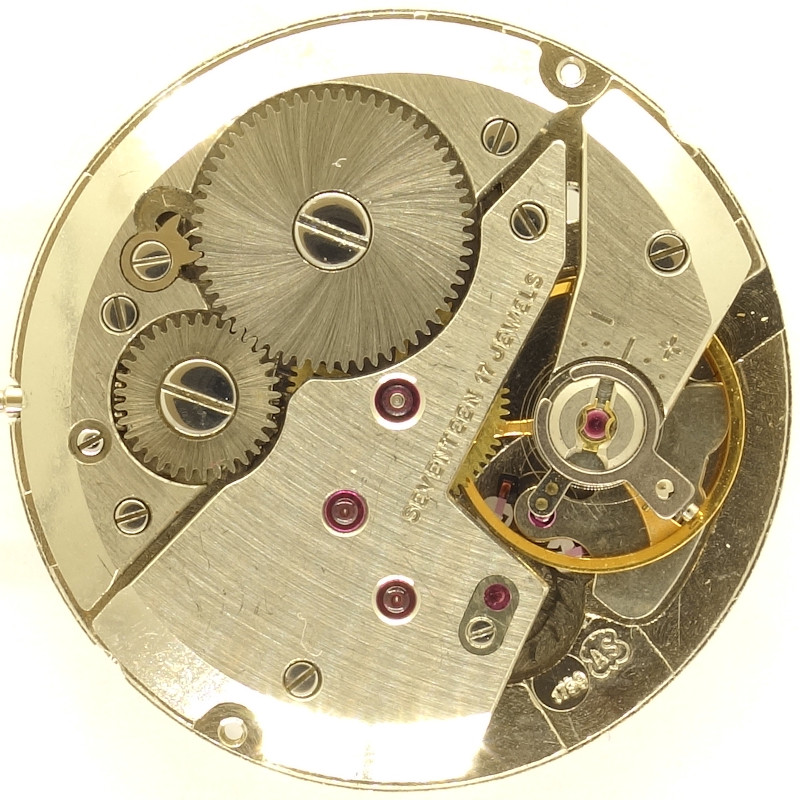

The proven AS 1526 got an update with a higher beat rate (21600 A/h) and was then launched as AS 1759.

It has got a diameter of 11 1/2 lignes, but in fact, it is a 10 1/2 ligne movement, on which only the diameter of the base plate was enlarged.

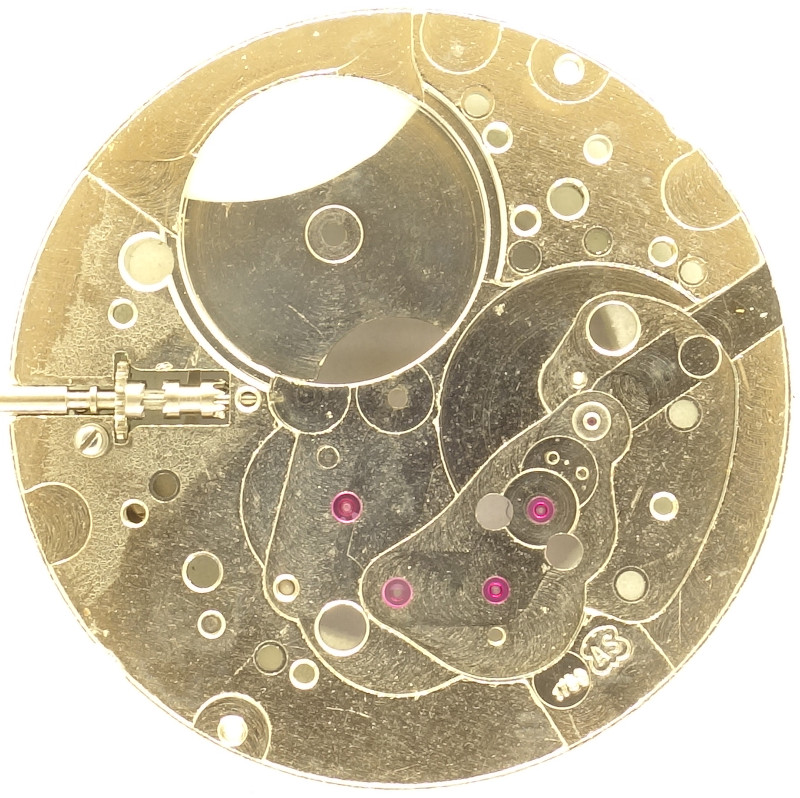

AS 1759: base plate

base plate

The base plate shows, that all important bearings contain rubies. Only the minute wheel on the dial side, and the barrel on both sides are only meal beared, but since they rotate so slowly, that’s not a real disadvantage.

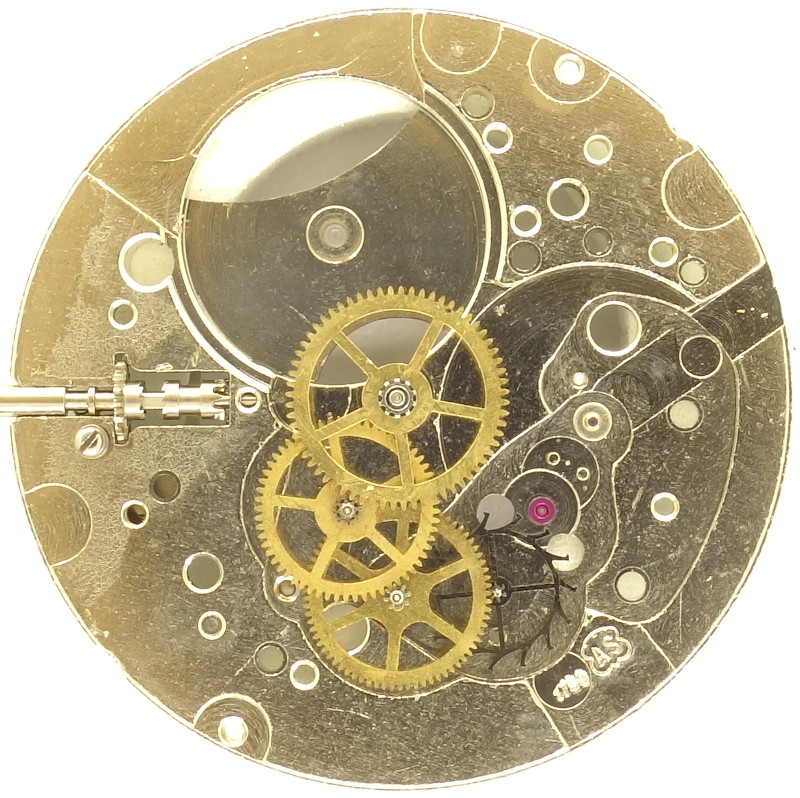

AS 1759: gear train

gear train

The AS 1759 uses the classical linear gear train with directly driven center minute wheel, third wheel, seconds wheel at 6 o’clock (here without prolonged axle for a seconds hand) and filigree steel escape wheel.

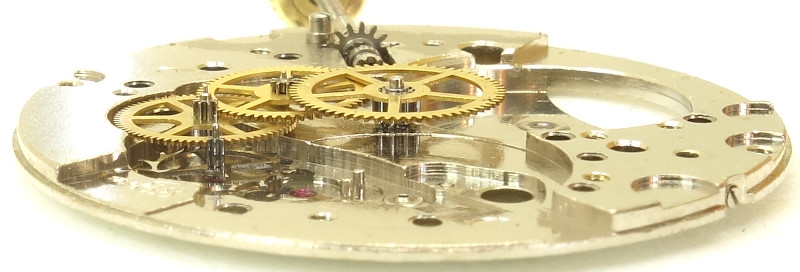

AS 1759: side view of the gear train

side view of the gear train

Of course, the AS 1759 uses a swiss pallet lever escapement. It is controlled by a golden toned, three leg Glucydur balance, which beats a little faster, with 21600 A/h.

The balance wheel is beared in two Incabloc shock protections and its precise frequency is adjusted at the hairspring key.

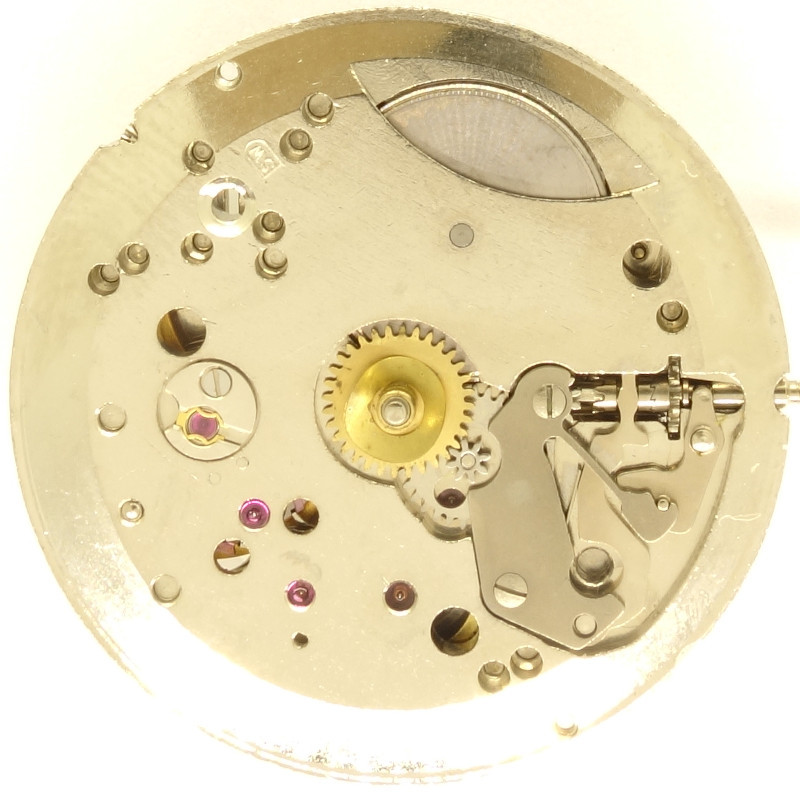

AS 1759: AS 1759: Dial side

AS 1759: Dial side

The AS 1759 shows the familiar view on the dial side, with the Incabloc shock protection on the left and the yoke winding system on the right.

The base plate is slanted on the outer rim and cut out on the upper mainspring barrel area to reduce the height a few tenths of a millimeter.

In the lab

The specimen in the archive came without case into the lab got a simple service.

Timegrapher result

As expected, the rates are pretty well. The low amplitude values are an indicator, that this movement lacks a professional revision and will the perform even better.

horizontal positions
dial up +14 s/d 220° 0.2ms
dial down +10 s/d 224° 0.1ms
vertical positions
crown right (12 up) +5 s/d 189° 0.2ms
crown up (3 up) -4 s/d 192° 0.0ms
crown left (6 up) -6 s/d 187° 0.4ms
crown down (9 up) +10 s/d 192° 0.6ms

Technical data

Caliber base:AS 1525
Size:11 1/2''' (measured: 25,7mm)
lift angle:52°
Escapement:Pallet lever
Balance types: Glucydur anular balance (three legs)
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
References: Flume: K3 43
Mentioning in literature (years): 1971
Inventory number:21020

Usage gallery

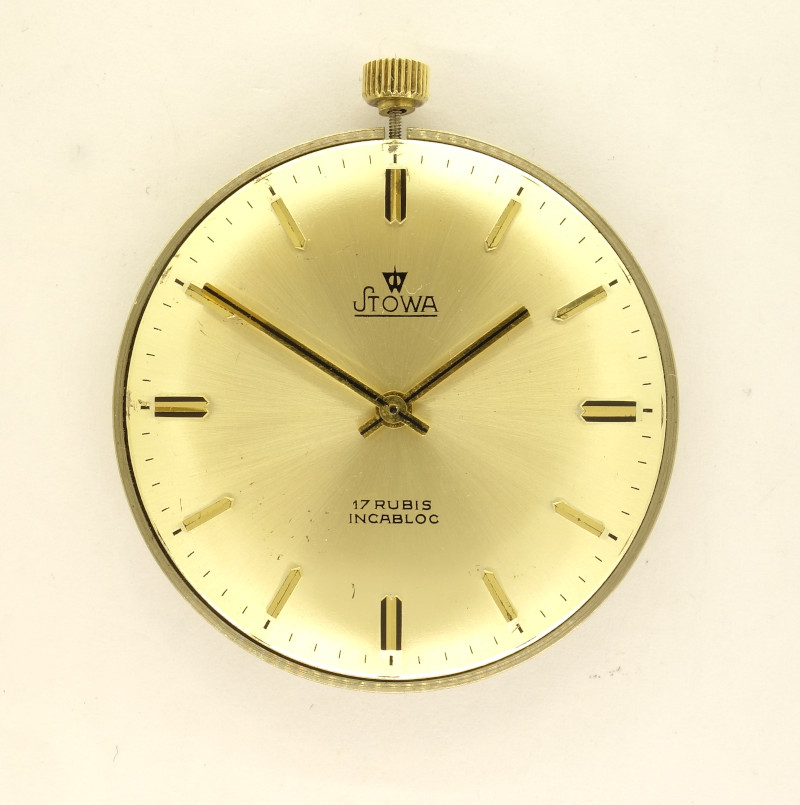

AS 1759: Stowa tails watch  (case missing)

Stowa tails watch (case missing)

This movement is a kind donation from Horst Kull to the archive. Thank you very much for your great support!
