AS 1012

Description

This is a rather old but high quality form movement of a ladies' watch. It was available in different versions, with Glucycur screw balance as well as with ring balance and shock-protected chatons.

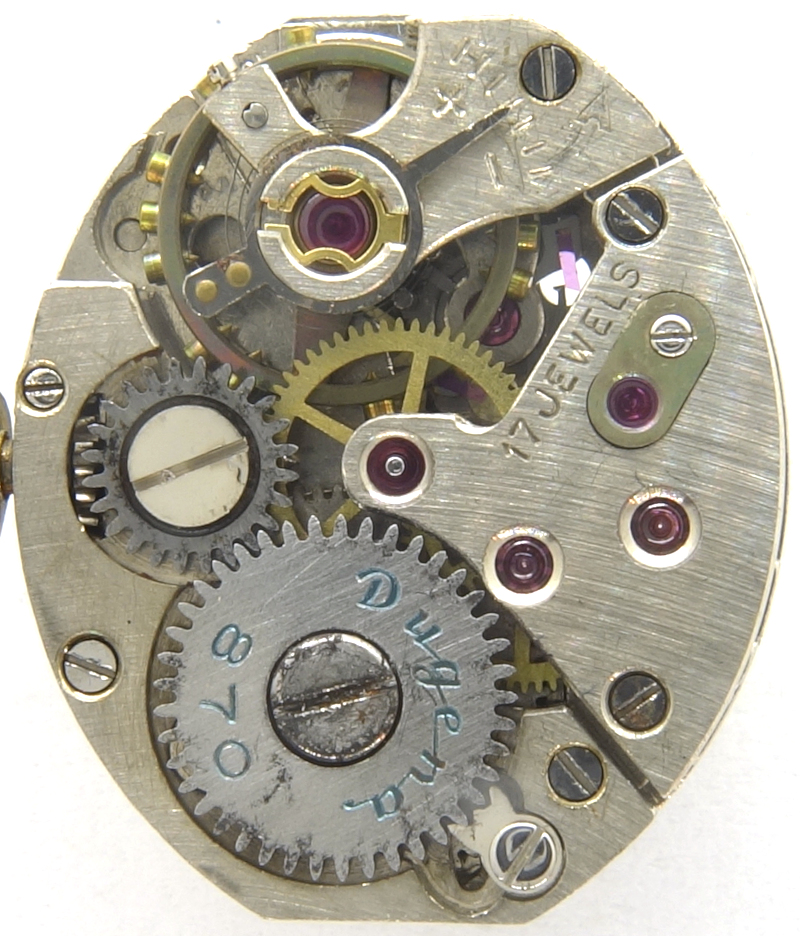

Dugena marked this movement as Dugena 870 and Consul as Consul 55.

AS 1012: AS 1012 with 21 jewels and screw-less balance

AS 1012 with 21 jewels and screw-less balance

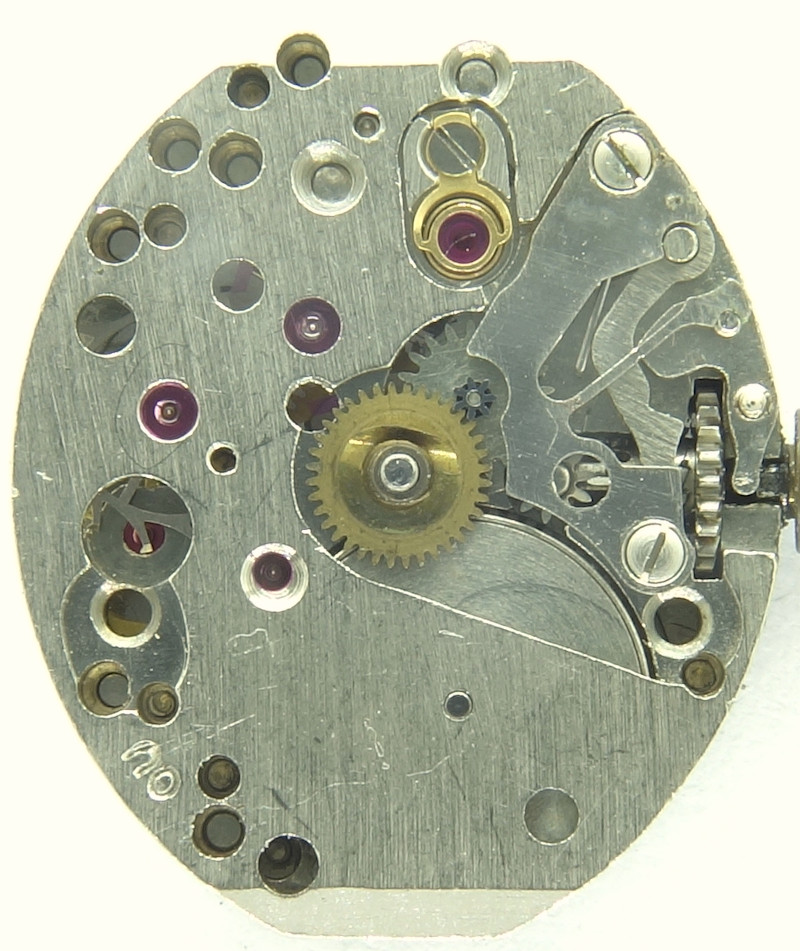

AS 1012: dial side

dial side

Technical data

Manufacturer:AS
Caliber:1012
Size:5 1/2''' (measured: 12,8 x 15,0mm)
A/h:18000
lift angle:52.28°
Number of jewels:17/21
Escapement:Pallet lever
Balance types: Glucydur anular balance

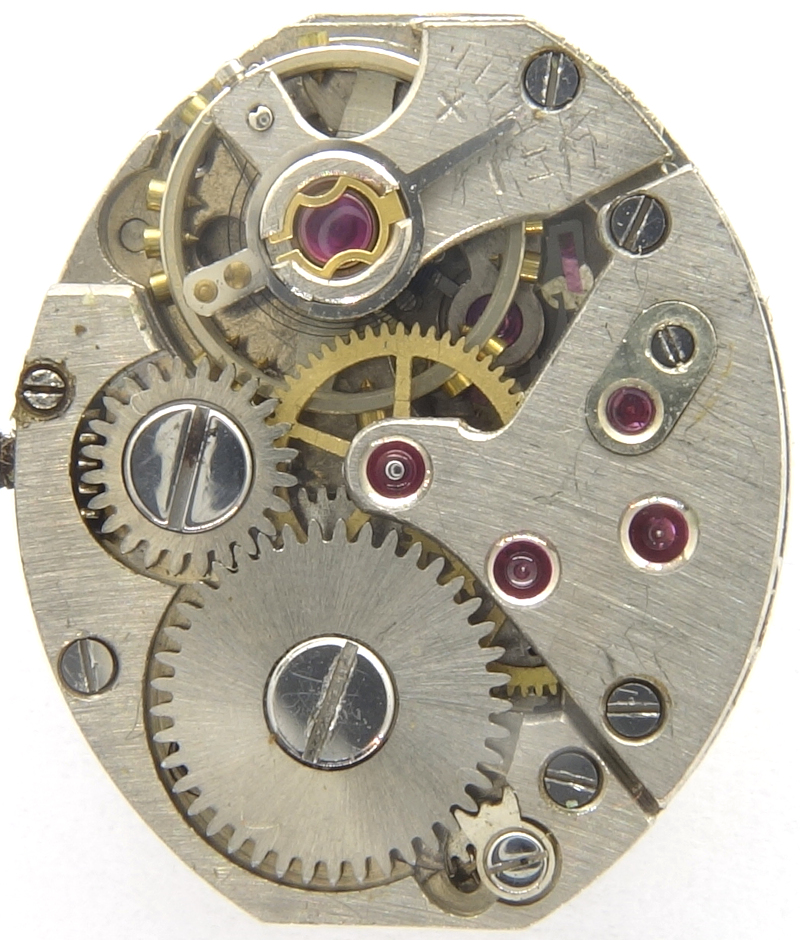

Glucydur screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm / hairspring key
Construction:
  • lever

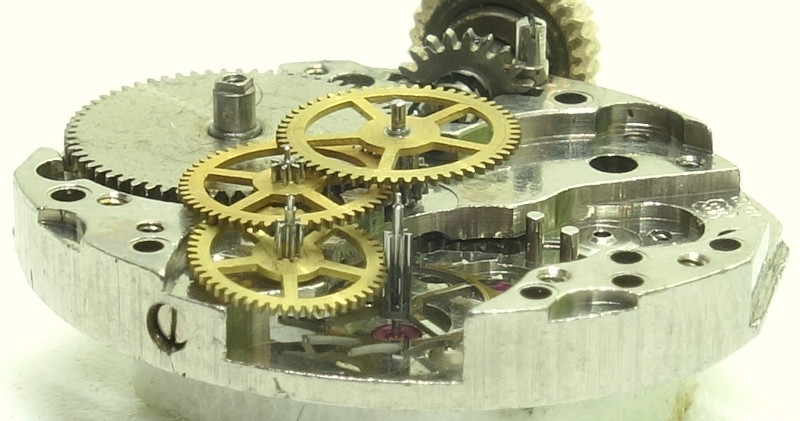

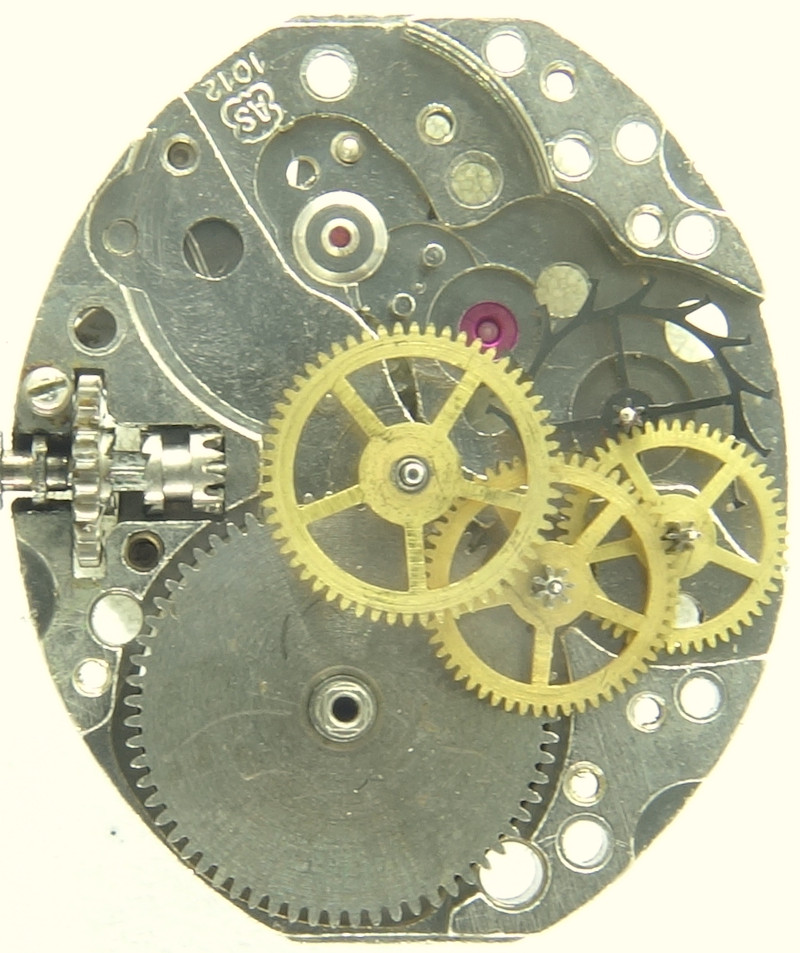

  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Production period:1936 - 1960
References: Flume: 1949 19
Mentioning in literature (years): 1959 - 1964

Usage gallery

AS 1012: Richard ladies' watch

Richard ladies' watch

AS 1012: Consul ladies' watch

Consul ladies' watch

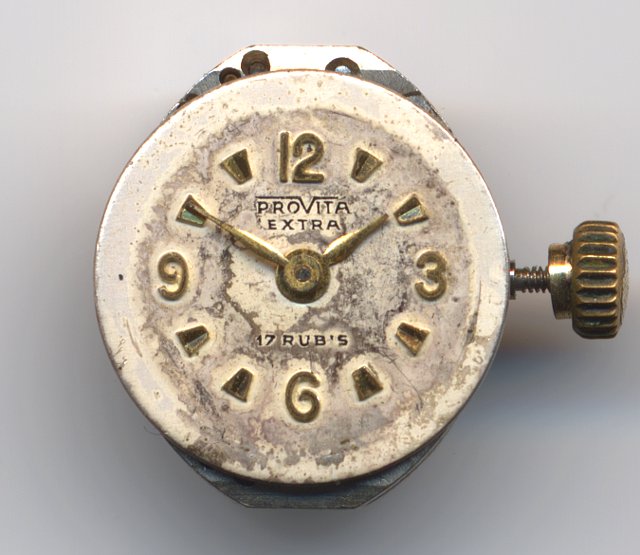

AS 1012: Provita Extra ladies' watch

Provita Extra ladies' watch

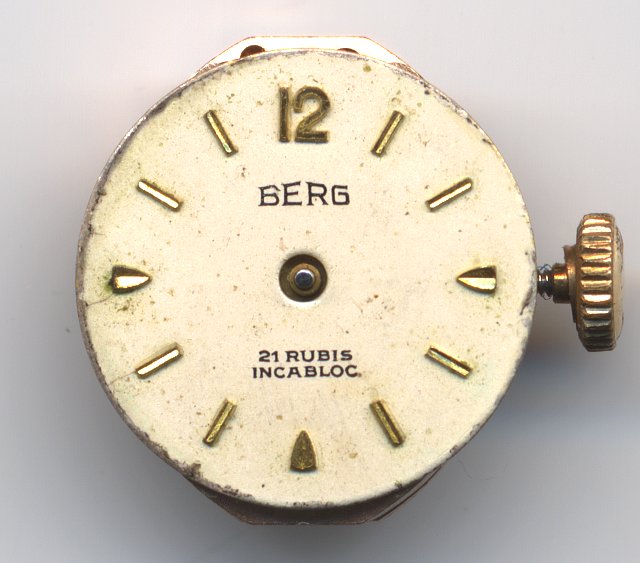

AS 1012: Berg ladies' watch

Berg ladies' watch

AS 1012: Wagner ladies' watch

Wagner ladies' watch

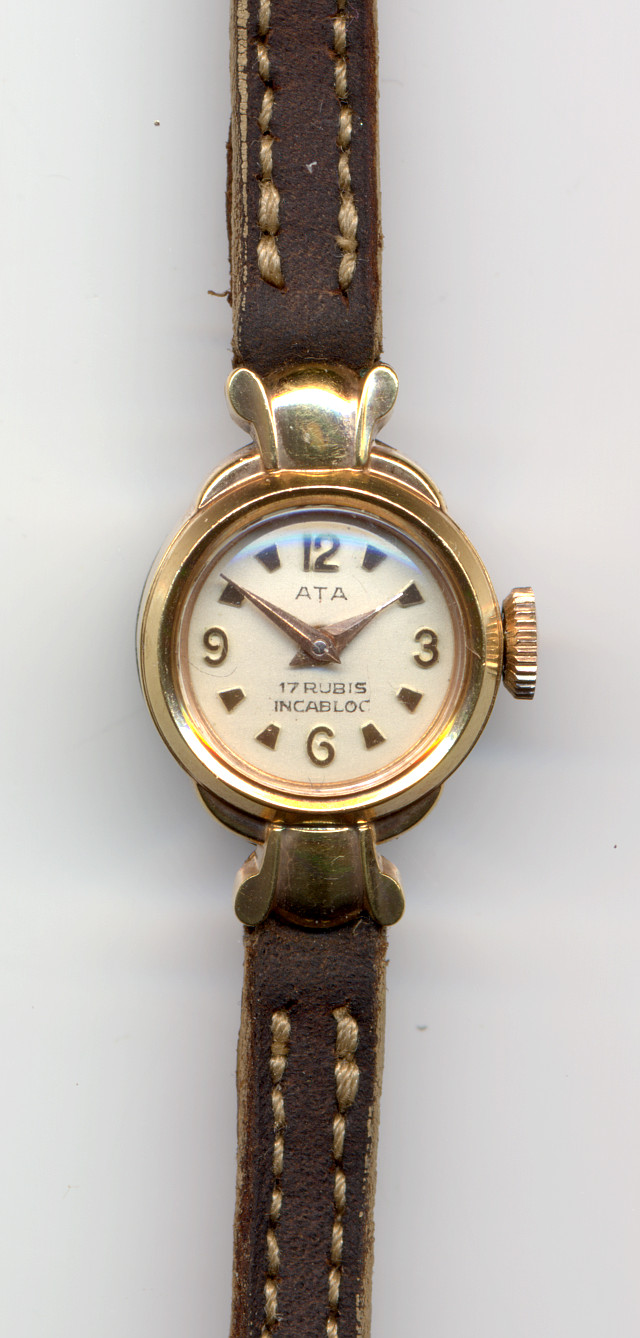

AS 1012: ATA ladies' watch

ATA ladies' watch

AS 1012: Dugena ladies' watch

Dugena ladies' watch

This movement in the non-shock-protected version, in the version with normal screw balance and in the version with 17 jewels and normal screw balance were donated by Harald Hoeber. Thank you very much! Also thank you very much to Günter G. for a donation of this movement including the ATA watch.
