Description

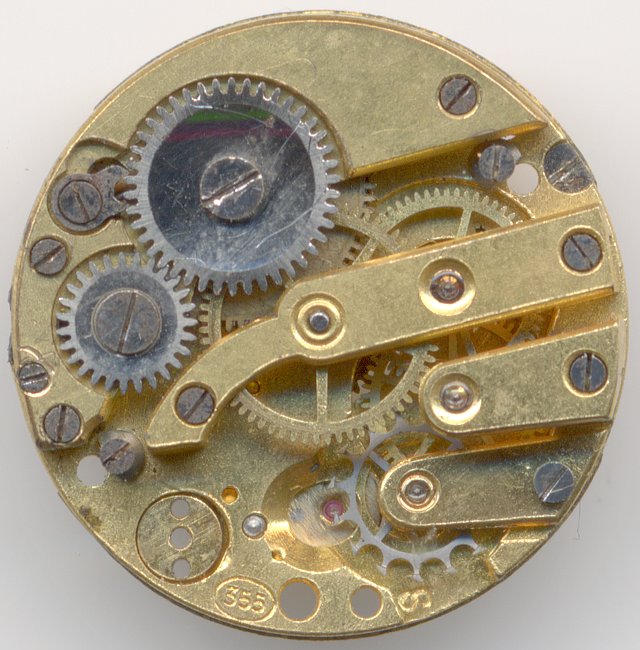

The ETA 355, still marked with the old ETA image, is a rather early cylinder escapement movement from Genchen in Switzerland. Yet in 1949, only a few repair parts were still available, besides this, technically it was way out of date, since a pallet- and even pin-lever movement was far more reliable, precise and required less maintenance.

Although on the specimen shown here, the balance including the cock is missing, it is obvious, that it was not shock protected and beared in four jewels. The remaining four jewels were used for the bearings of the cylinder wheel (on both sides) and of fourth and third wheel (on the movement side only), which guaranteed a low friction run.

The bridges of this movement remind of those of old pocket watch movement, on later movements, like the ETA 406, plates with multiple bearings were used.

On the dial side, this movement uses a rocking bar winding mechanism; oddly it has got an unused(!) crown wheel on the movement side.

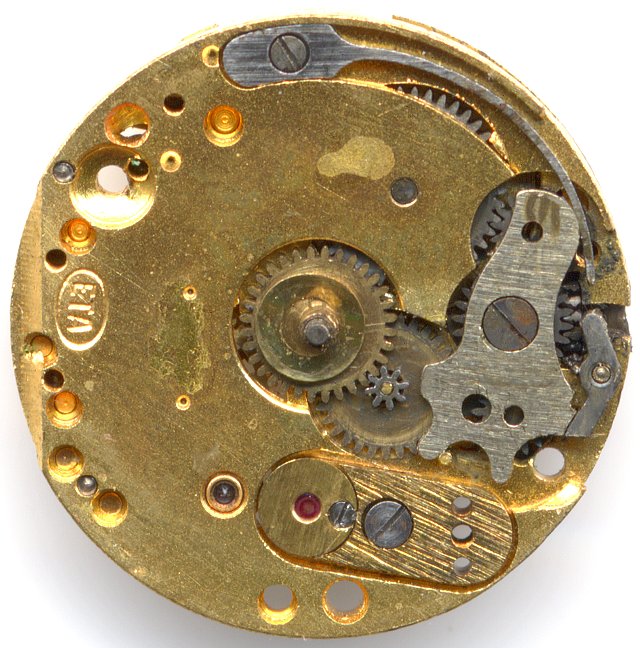

ETA 355 dial side

ETA 355 dial side

Technical data

Manufacturer:ETA
Caliber:355
Number of jewels:8
Escapement:Cylinder
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Construction:
  • escape wheel
  • seconds wheel
  • third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
Functions:hour, minute
A/h:18000
Size:9''' (measured: 20,0mm)
Literature: Flume: 1947 99

Usage gallery

Gala ladies' watch  (only dial)

Gala ladies' watch (only dial)
