ETA 746

Description

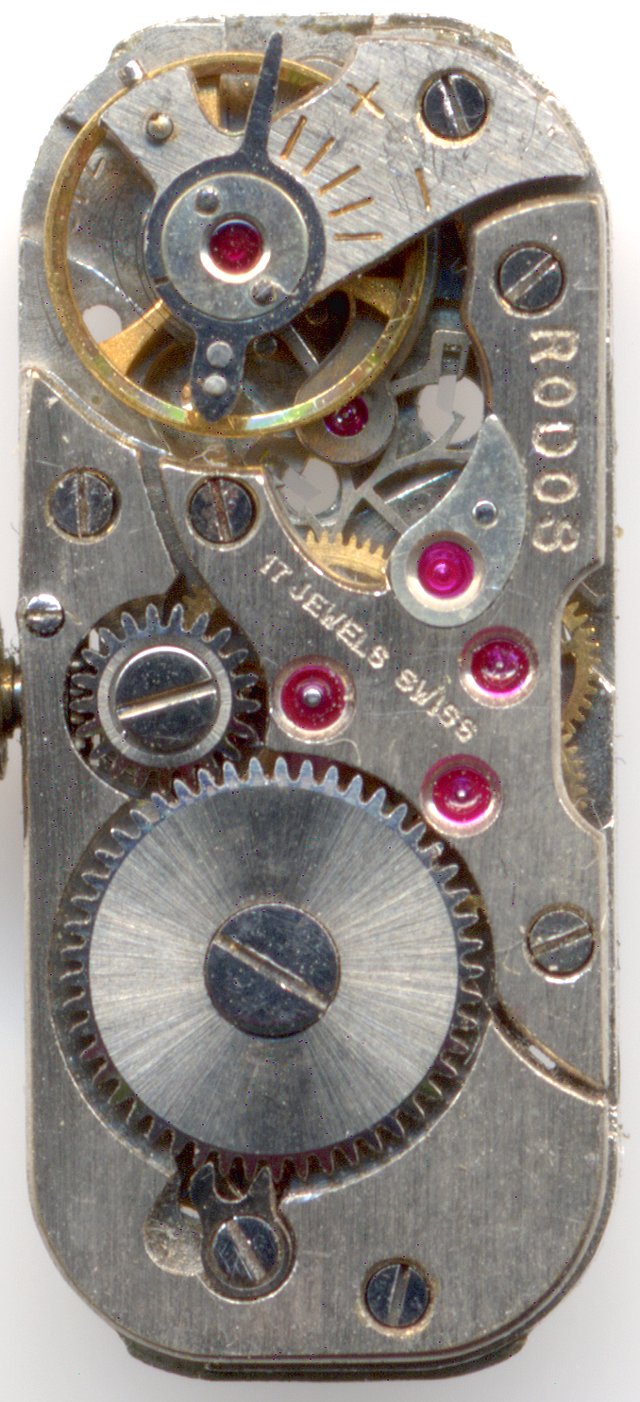

The ETA 746 is a baguette-type movement due to its shape and size. These kind of movements were very popular in the 1940ies, since they allowed the production of very slim and elegant watches.

Its quality is very high. At this time, 17 jewels were far above standard, and especially the drop-shaped deck jewel enclosure is a true beauty!

Whether the golden-toned Gluydur balance is an original part or an replacement is uncluear, but the blued hairspring is pretty sure original. An interesting detail is, that the anchor pallets are made of transparent material (but which one?).

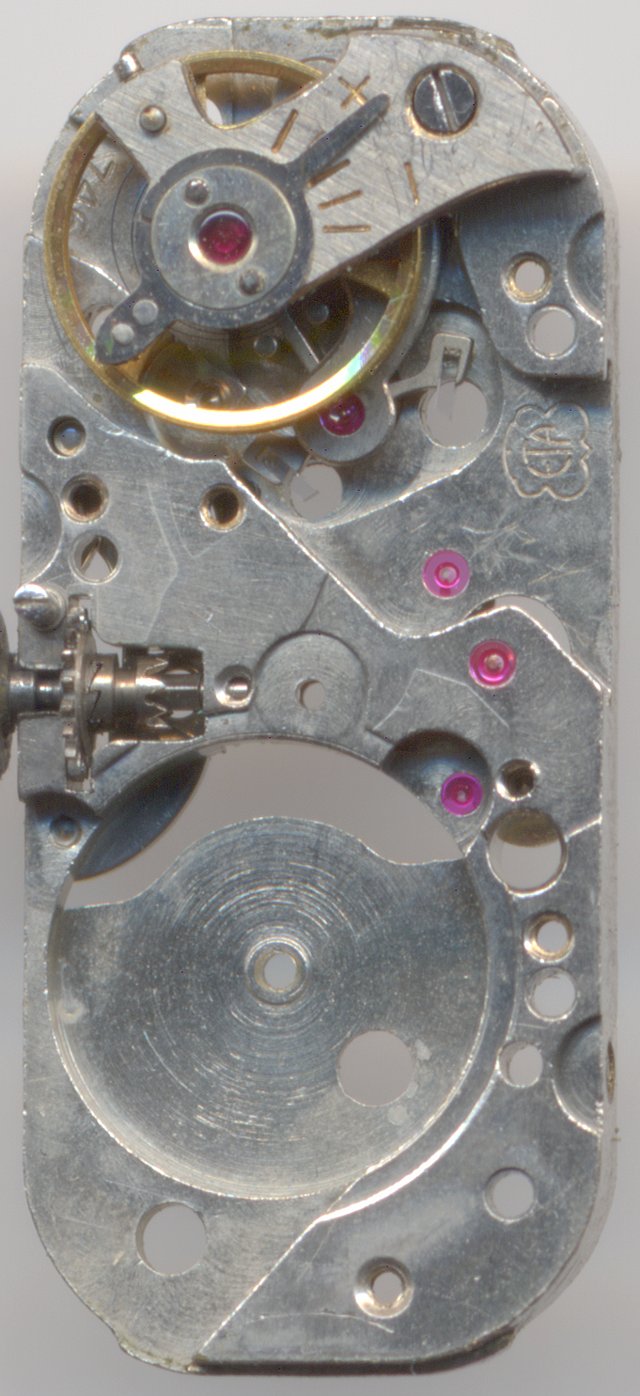

base plate

base plate

On the dial side, there’s speciality: The minute wheel is located on the opposite side of the crown and not as usual at the crown side.

Of course, this movement uses a yoke winding system, and the engraved minute scale must not be missed either.

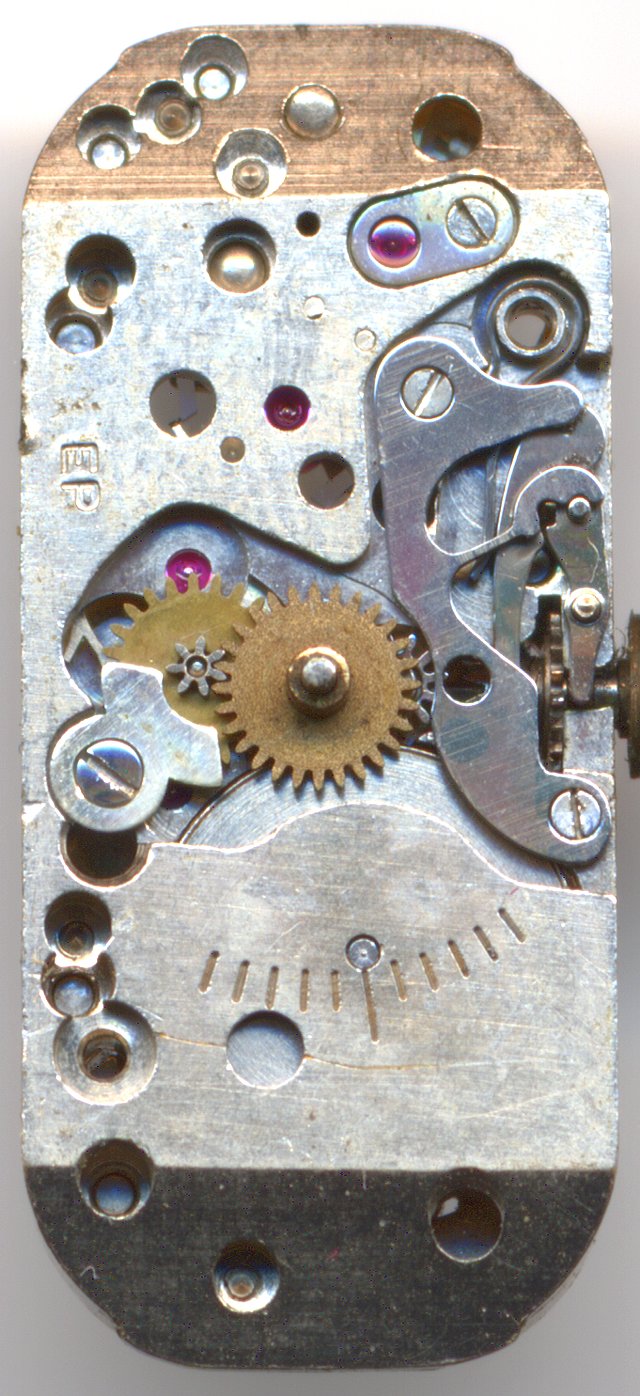

ETA 746 dial side

ETA 746 dial side

Technical data

Manufacturer:ETA
Caliber:746
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Functions:hour, minute
A/h:18000
Size:4 1/4 x 10''' (measured: 22,3 x 10,0mm)
Literature: Flume: 1947 116

Usage gallery

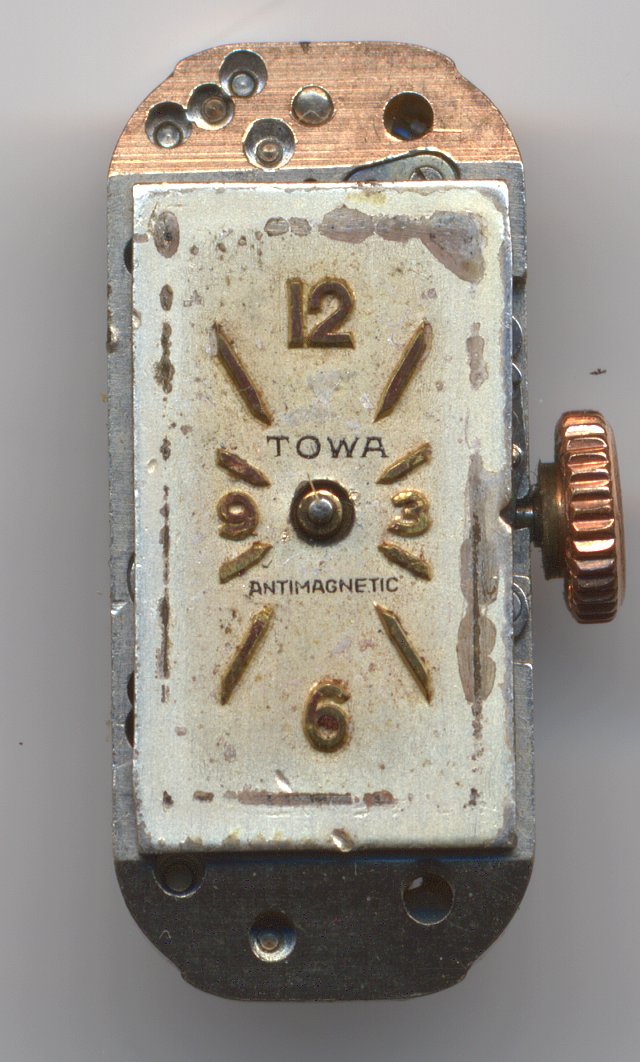

Towa ladies' watch  (dial only)

Towa ladies' watch (dial only)

Links

This movement was kindly donated by Harald Hoeber. Thank you very much!
