ETA 583

Description

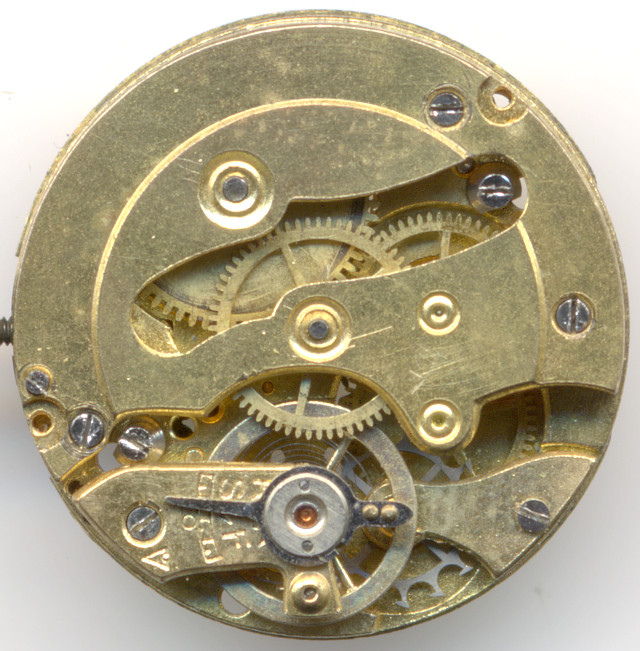

This old ETA cylinder movement has got a diameter of 19,1mm.

Thanks to JackDaniels of the german UhrForum, it could be found on the Paulson movement finder of 1950 and identified as ETA 583.

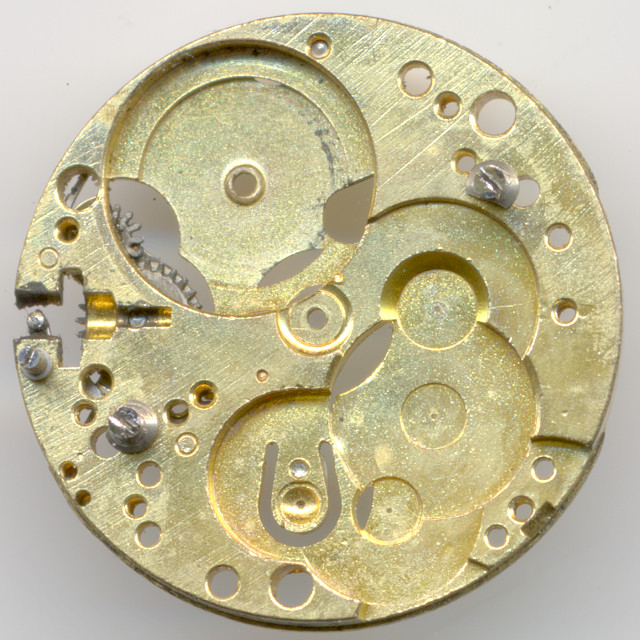

ETA 583: base plate

base plate

On the base plate, you see, that there are no ruby bearings. Only the balance wheel has got a single ruby bearing on the cock.

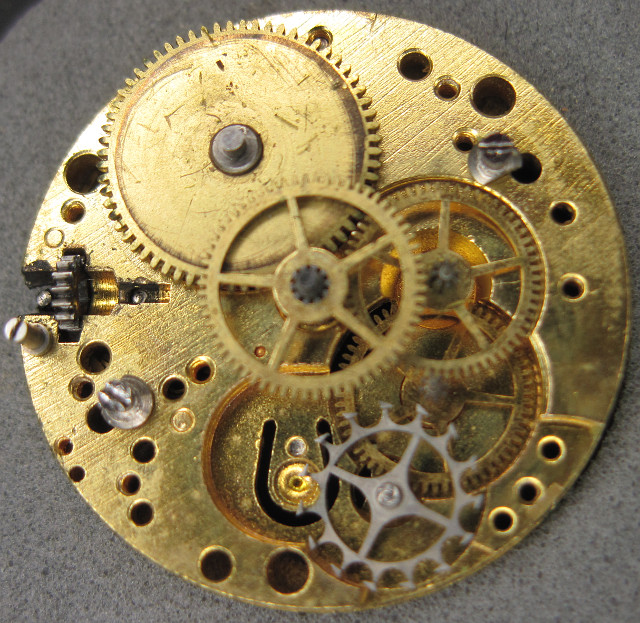

ETA 583: gear train

gear train

The gear train is standard for a cylinder movement.

ETA 583: side view of the gear train

side view of the gear train

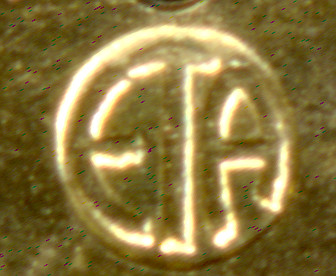

A speciality is the round and rare ETA hallmark, which was used only for a short period of time.

ETA 583: old, round ETA hallmark

old, round ETA hallmark

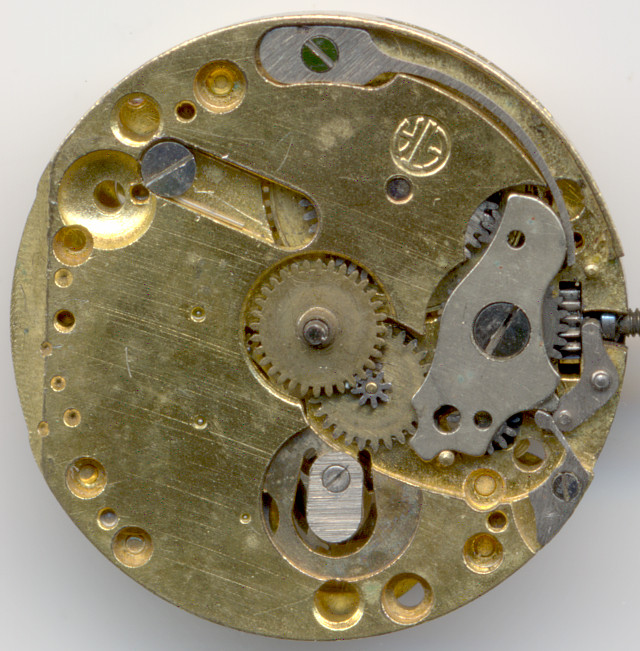

On the dial side, there’s a contemporarily modern rocking bar winding system with a very simple click mechanism, which consists only of a single spring.

ETA 583: ETA 583: Dial side

ETA 583: Dial side

Technical data

Manufacturer:ETA
Caliber:583
Size:8 3/4'''
A/h:18000
Number of jewels:1
Escapement:Cylinder
Balance types: Nickel anular balance (three legs)
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • cylinder wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)

Usage gallery

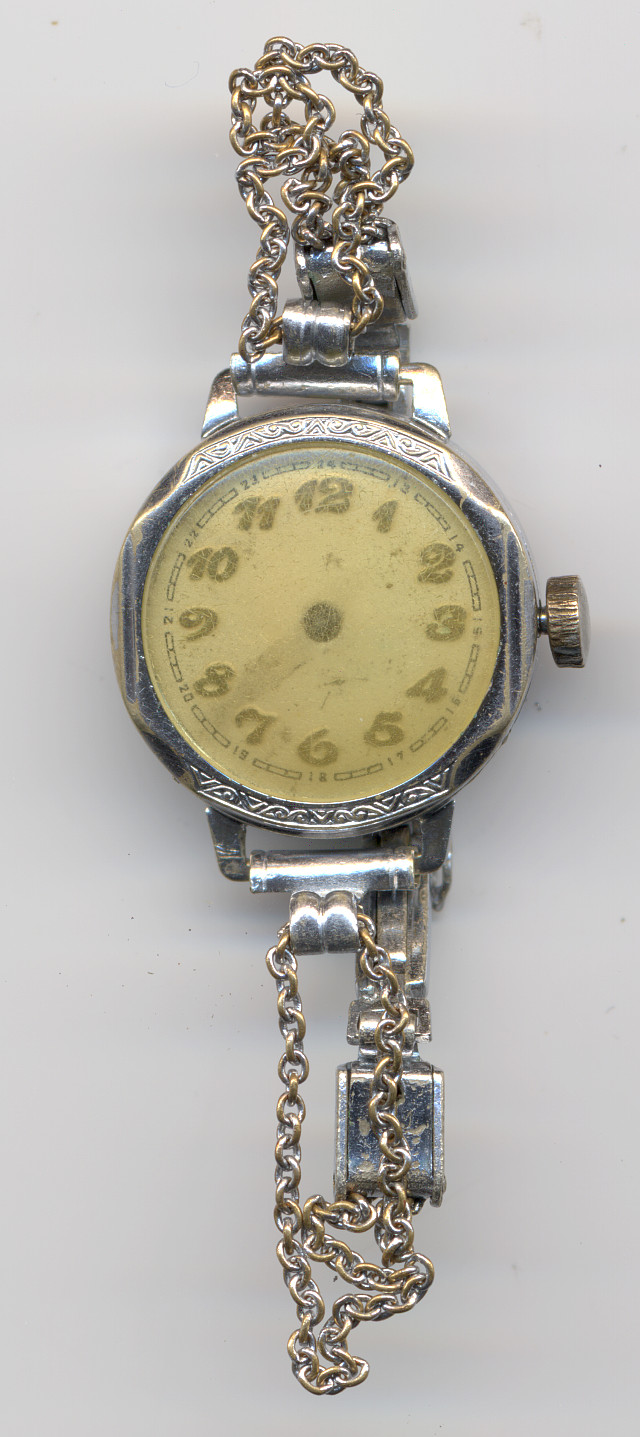

ETA 583: unmarked ladies' watch

unmarked ladies' watch

This watch and movement is a kind donation for the movement archive. Thank you very much!
