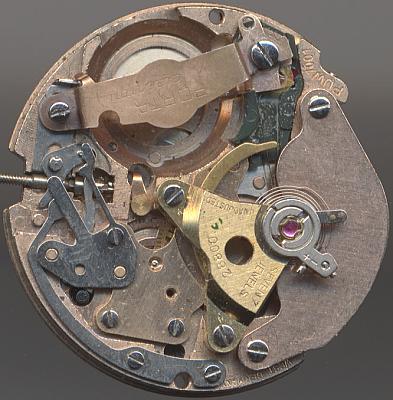

PUW 1001


PUW 1001

PUW 1001

Description

This movement was the second electromechanical movement, which was produced in Pforzheim, Germany. When it was launched in 1969, it was so precise, and could even be regulated by a micrometer screw, that it ran within the chronometer specifications.

Technically, it was built the traditional way: Balance with coil, electric contacts and permanent magnet. There was one speciality with the permanent magnets: With releasing just one screw, the whole plate with the magnets could be pulled away, giving free access to the balance.

Detail: Balance

Detail: Balance

This movement was produced a few years only and the replaced by a new movement without electric contacts.

Due to the usage of electric contacts, the expected life time was only about seven years. This means, that working movements are very hard to find nowadays.

Technical data

Manufacturer:PUW
Caliber:1001
Size:12 1/2'''
A/h:28800
Number of jewels:7
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Bridge
Moveable stud:yes
Adjust mechanism:Triovis
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Features:
  • SC? (center seconds (type unknown))
  • QG (date indication (aperture))
  • RDR (date corrector)
  • EL (elecromechanically powered)
Production period:1969 - ?
References: Flume: K3 306
Mentioning in literature (years): 1969 - 1970

Usage gallery

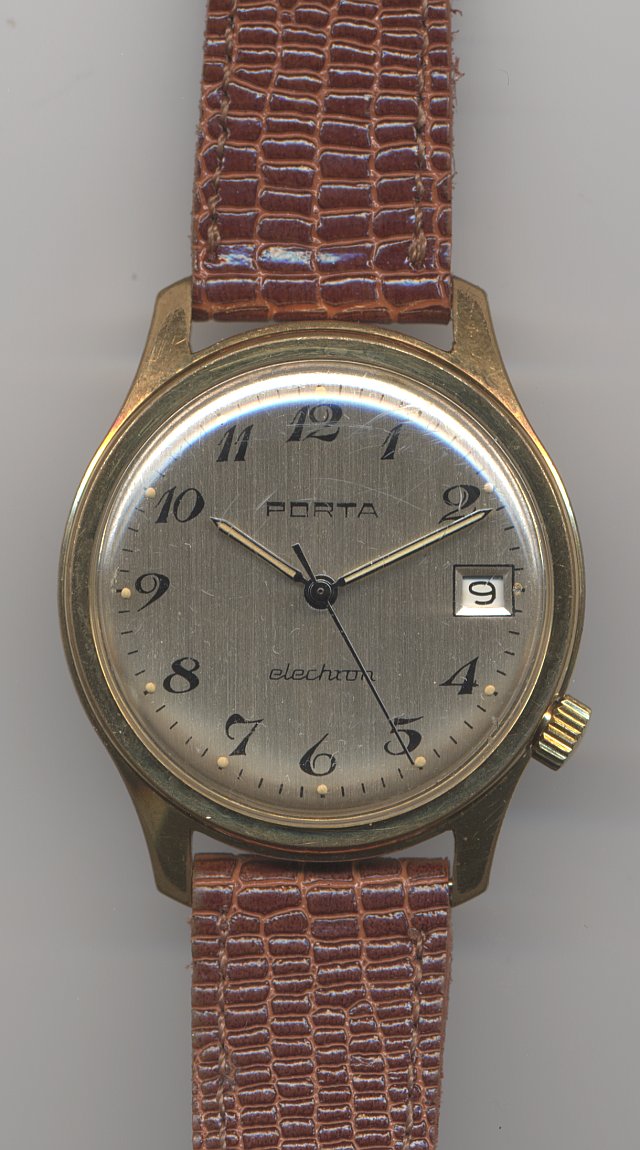

Porta Elechron gents watch

Porta Elechron gents watch
