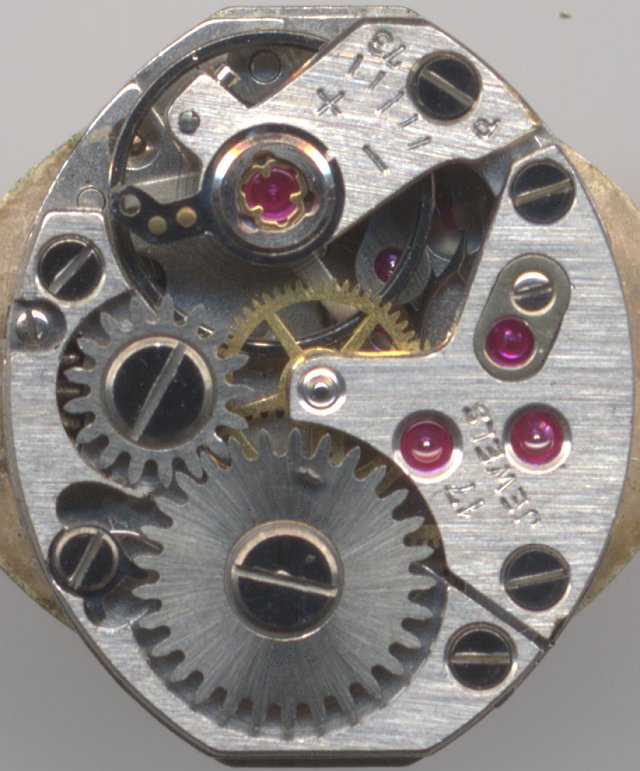

PUW 73


PUW 73

PUW 73

Description

The PUW caliber 73 is a typical ladies` form movement in the common size of 5 34 x 7 lignes, which was also marked as Dugena 975 and available in different versions.

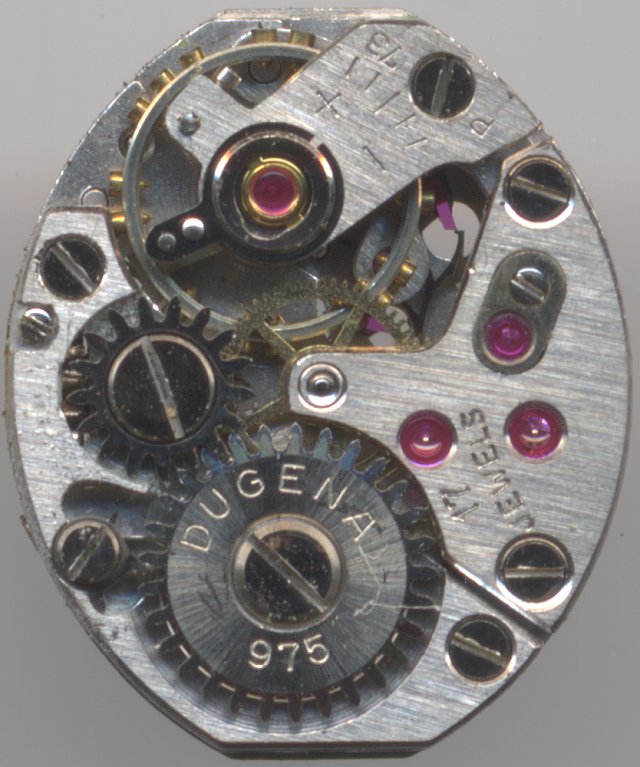

different version with screw balance, also available as Dugena 975

different version with screw balance, also available as Dugena 975

One version was equipped with a screw balance and a rare Monorex shock protection, another one had a screwless ring balance and an equally untypical KIF Trior shock absorber. Besides this, it was made like every other form movement of this size. On the dial plate, you can see the space for an alternative bearing of the balance, probably even for a simple jewel without shock protection. This might indicate, that this movement was constructed probably in the 1950ies, where not all watches were equipped with shock protections, and on the dial plate, you can also see the old “PUW” signature.

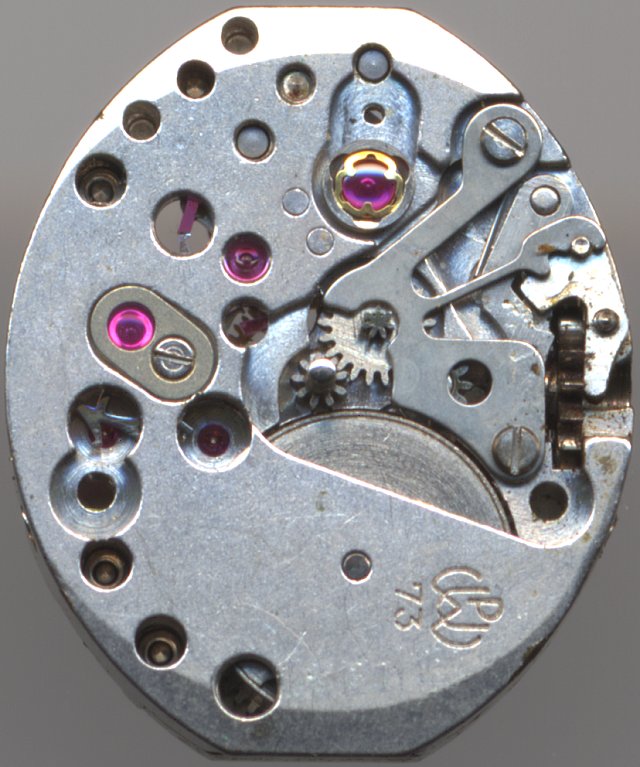

PUW 73 dial side

PUW 73 dial side

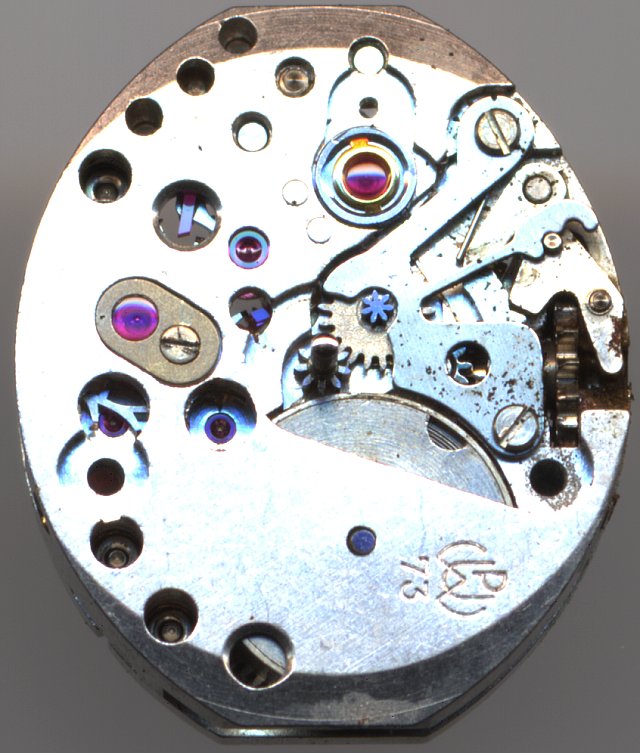

dial view with Monorex shock protection

dial view with Monorex shock protection

Technical data

Manufacturer:PUW
Caliber:73
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Nickel anular balance
Shock protection(s): KIF Trior
Monorex
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Functions:hour, minute
A/h:18000
Size:5 3/4 x 7'''
Literature: Flume: 1962 30

Usage gallery

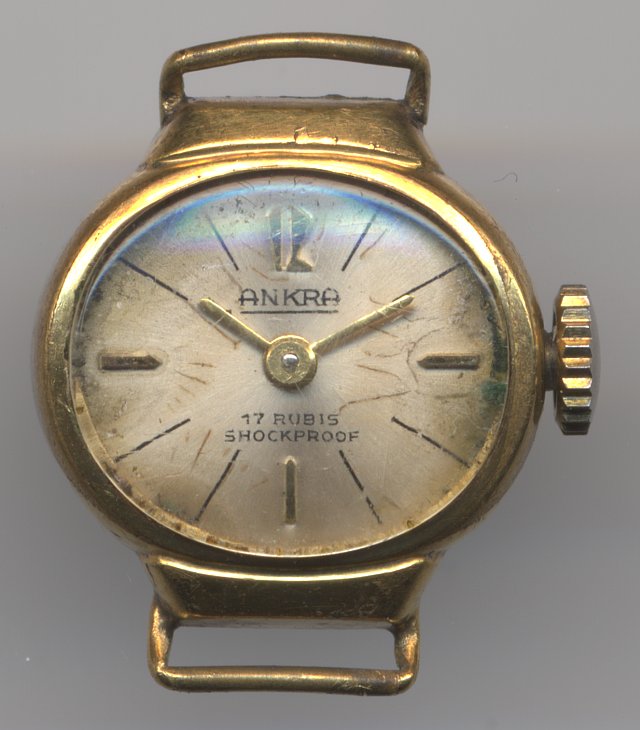

Ankra ladies' watch

Ankra ladies' watch

Dugena ladies' watch

Dugena ladies' watch
