FHF 37 (INT)


FHF 37 (INT) | 17jewels.info - The Movement Archive

FHF 37 (INT)

Description

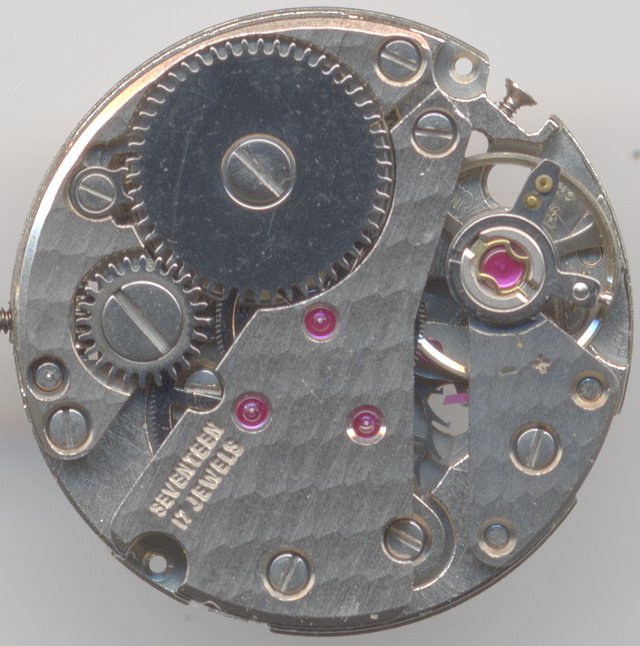

In the seventies, the FHF 37 was released as a movement of their late period. You see on this movement, that it was designed with cost reduction in mind, by looking at the “hammer-nail decoration” (or non-decoration) of the plates or the very large yoke spring, which also keeps the minute wheel in position.

Technically, the movement is very well made, the tiny ring balance is of course secured by two Incabloc shock protections and beats with contemporary fast 21600 A/h. The center second hand is directly driven and is on the same position as the minute gear one layer deeper.

On the dial side, there’s a yoke winding system, which is already equipped with a very large and pretty ugly yoke spring and so doesn’t look much better than a rocking bar winding mechanism.

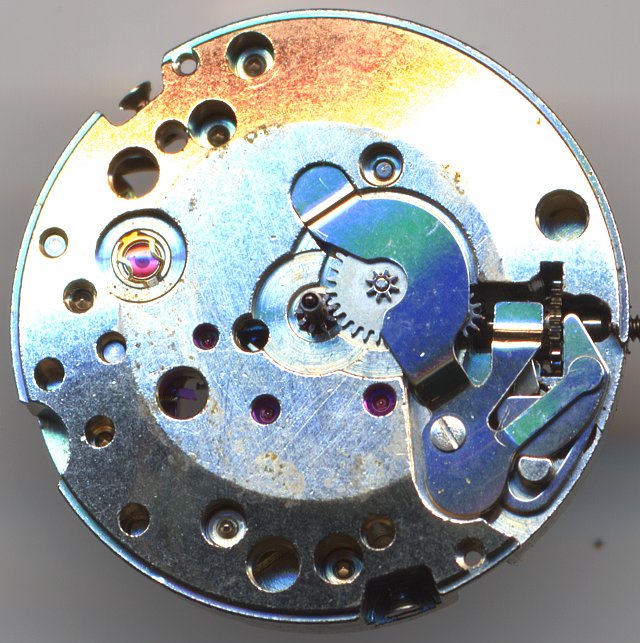

FHF 37 (INT): FHF 37 dial side

FHF 37 dial side

Technical data

Manufacturer:FHF
Caliber:37 (INT)
Size:8 3/4'''
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:
  • SCD (direct center seconds)
References: Flume: K3N1 -

Usage gallery

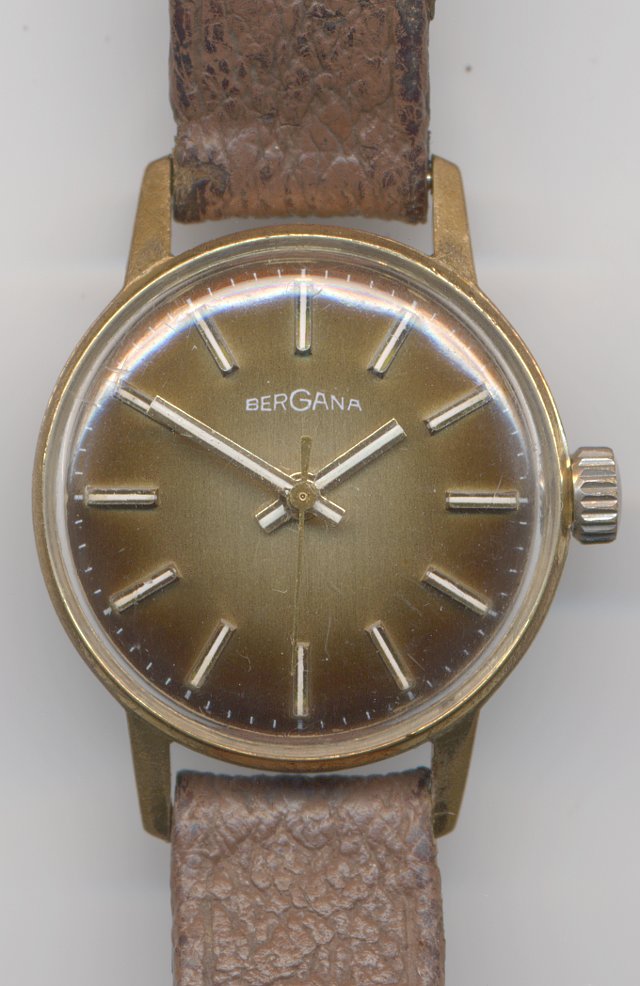

FHF 37 (INT): Bergana ladies' watch

Bergana ladies' watch
