Description

The diameter of the FHF 32, which was launched in the early 1950s, is only 17.2mm (7 3/4 lignes).

As expected from FHFH, it is a quality movement, and the version shown here, with a golden toned Glucydur screw balance and three cap jewels on the gear bridge, is hard to top.

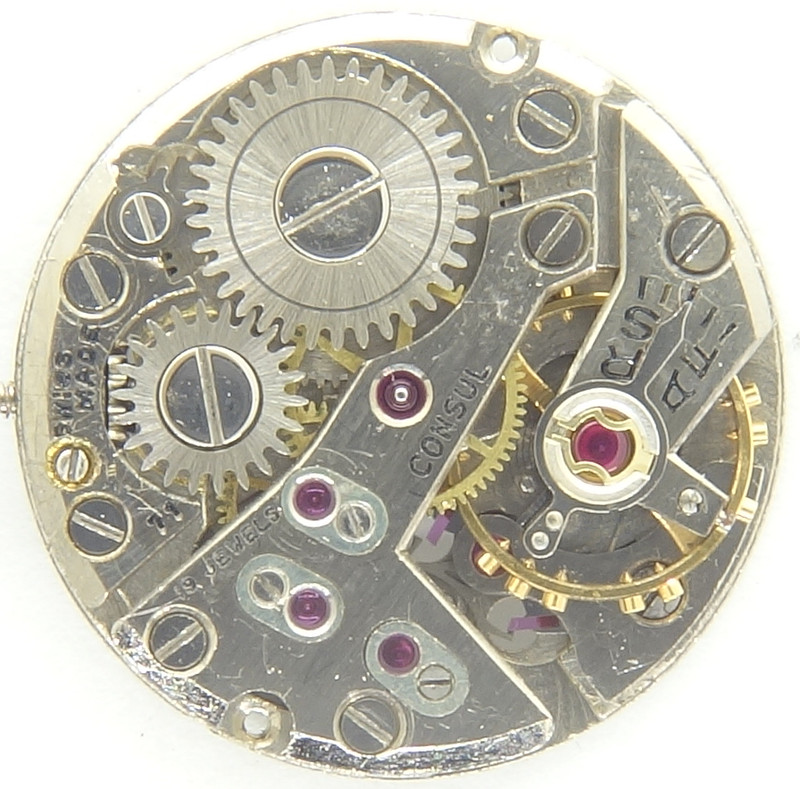

base plate

base plate

Of course, all important bearings contain rubies, only minute wheel and mainspring barrel have to metal bearings, but that’s absolutely sufficient, since the force of the gears is always high enough.

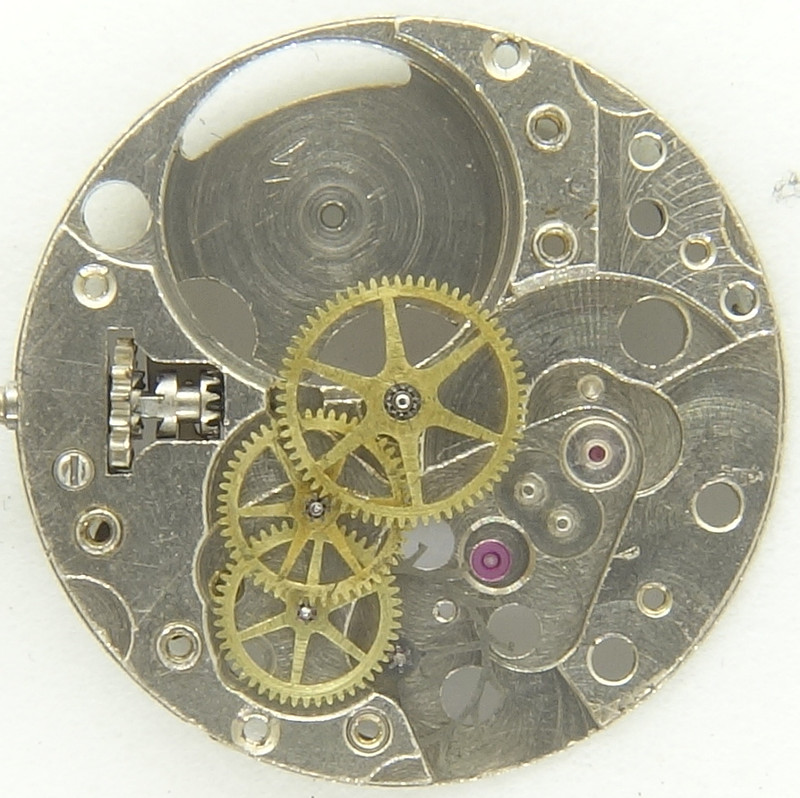

gear train

gear train

The gear train is contemporarily modern: The mainspring barrel directly drives the center minute wheel, followed by third wheel, seconds wheel and steel escape wheel.

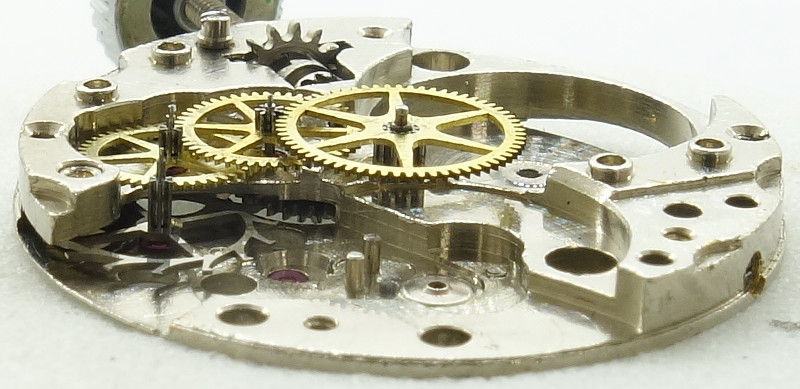

side view of the gear train

side view of the gear train

The golden colored Glucydur screw balance is already beared in two Incabloc shock protections. It beats contemporarily slow with 18000 A/h. Its precise frequency can be adjusted with a long regulator arm and a scale.

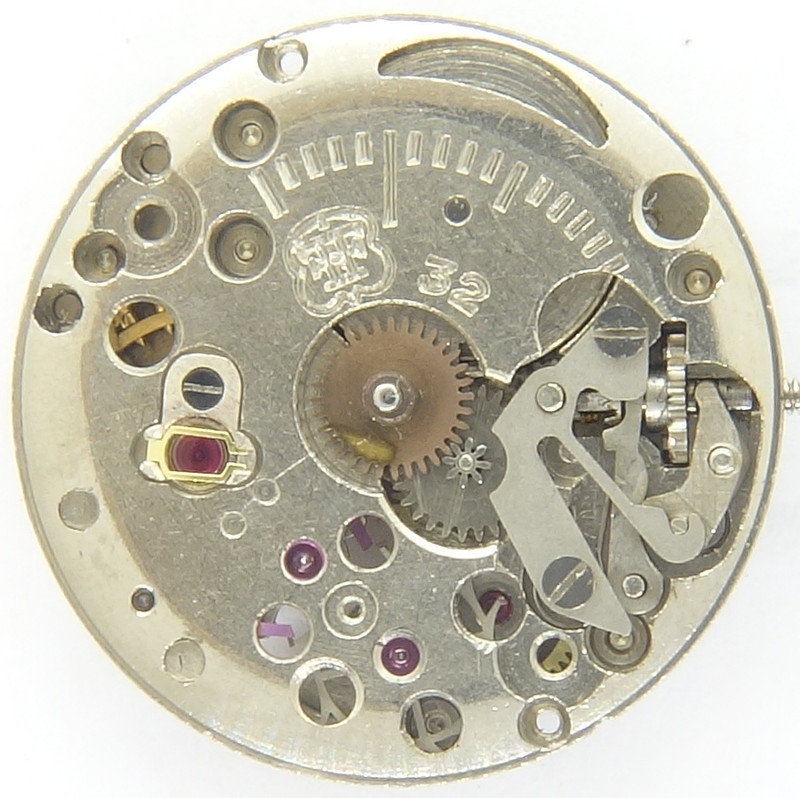

FHF 32: Dial side

FHF 32: Dial side

On the dial side, you see the flat Incabloc bearing for the balance wheel, and on the opposite side the yoke winding system.

At 12 o’clock there’s a partial minute scale, which allowed the adjustment of the movement without dial.

Technical data

Manufacturer:FHF
Caliber:32
Size:7 3/4''' (measured: 17,2mm)
A/h:18000
Number of jewels:19
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
References: Flume: 1952 2
Inventory number:20003

Usage gallery

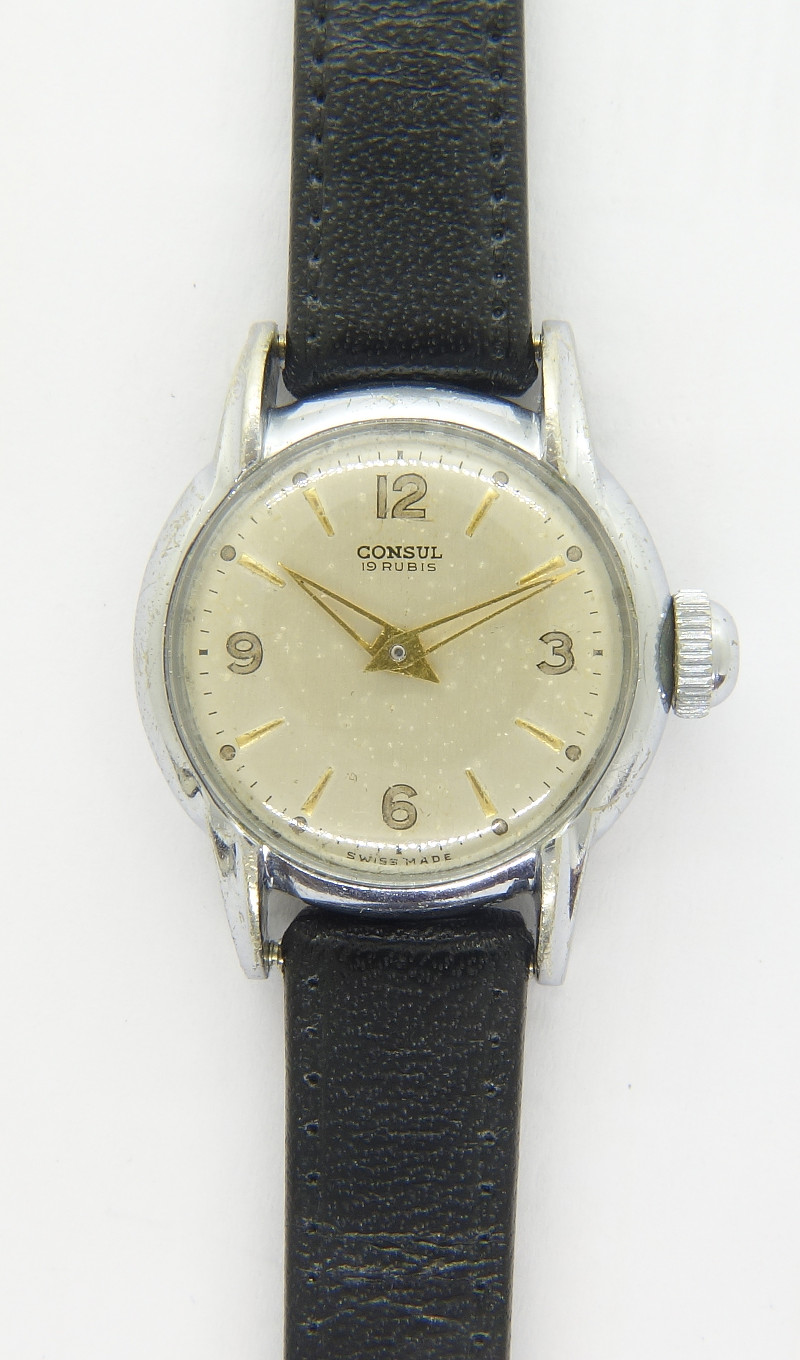

Consul ladiues' watch

Consul ladiues' watch

This movement with watch is a kind donation from Mario. Thank you very much for your support!
