FHF 59N

Description

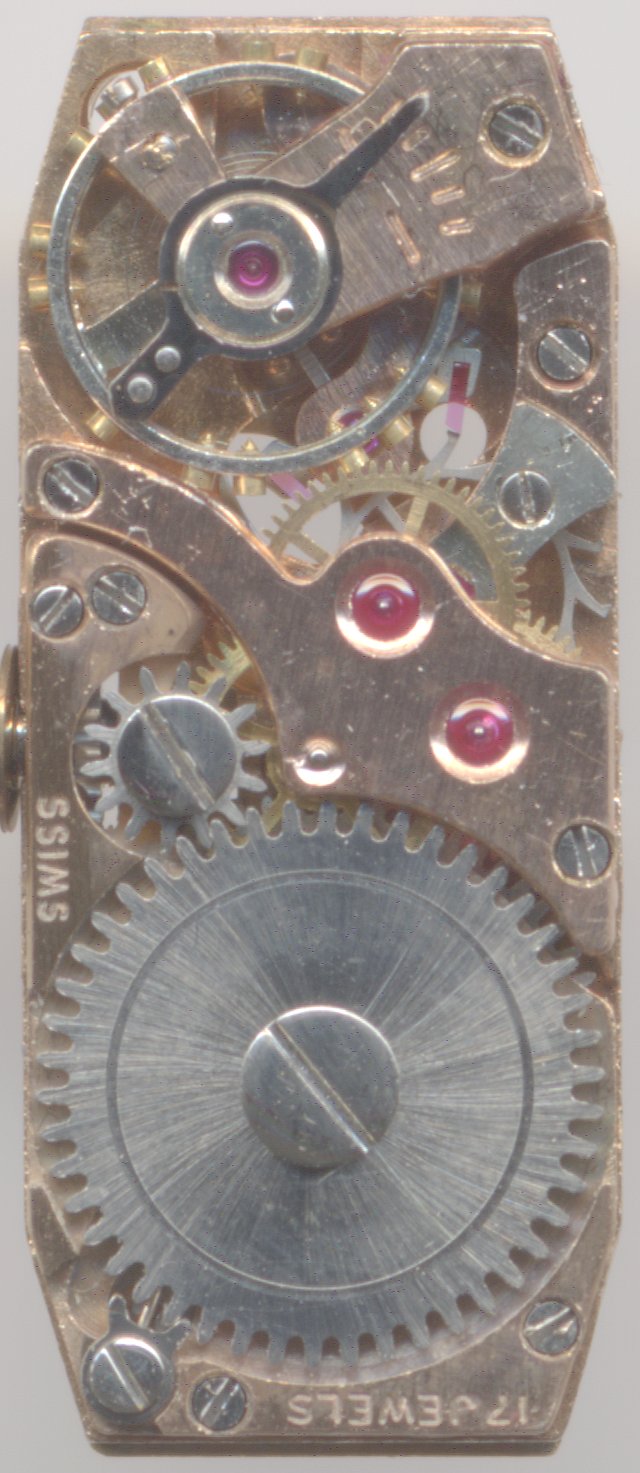

The FHF 59N is one of the smallest form movements ever made, and besides this the absolutely smallest baguette-type movement with only one layer (compare Omega 690.

The crown wheel is also noteable: The theeth are slanted on the outher side to make the opening on the movement as small as possible to safe another few tenth of a millimeter in height.

The gear construction is a classic one with the non shock protected screw balance, whose hairspring is fix connected to the balance cock and can be adjusted by a long regulator arm. The pallet lever movement is made in one single layer and directly drives the center minute hand. The escapement wheel is beared with two cap jewels, thus avoding interferences with the overlapping fourth wheel.

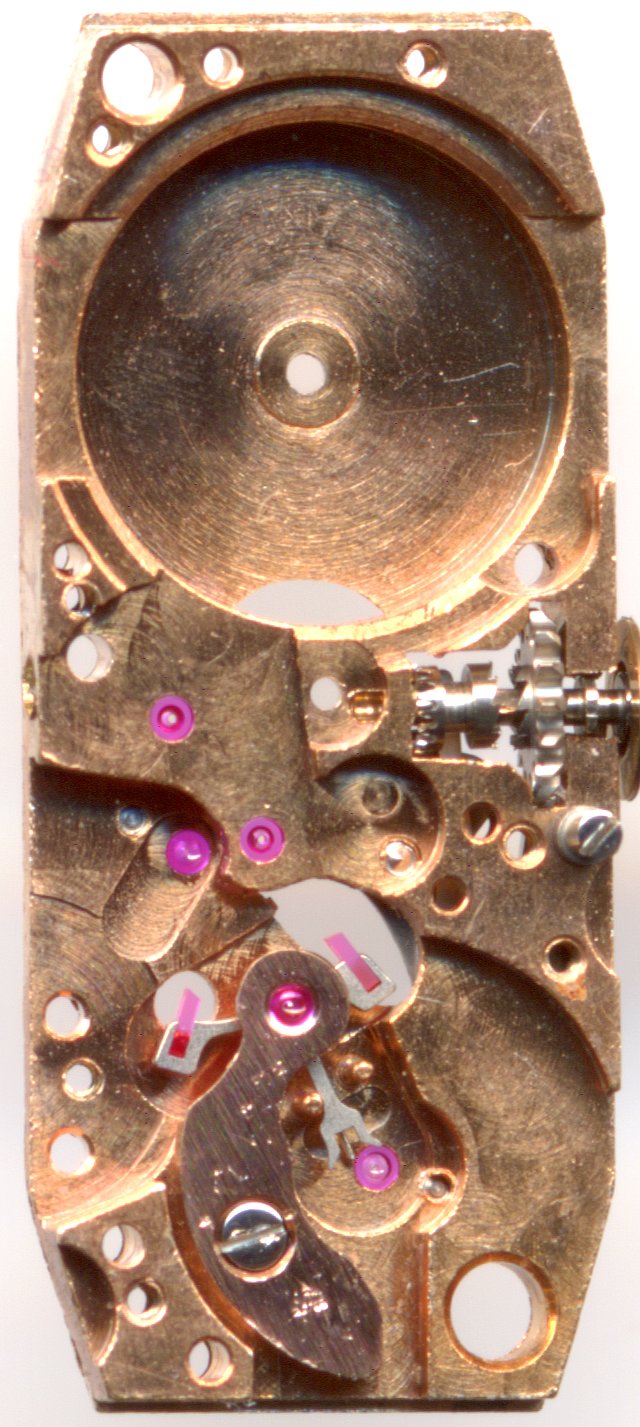

base plate

base plate

On the dial side, the service friendly construction is continued: The large holes in the main plate allow easy servicing and oling of the pallet stones.

The FHF 59N uses a yoke winding system just like many other good movements do.

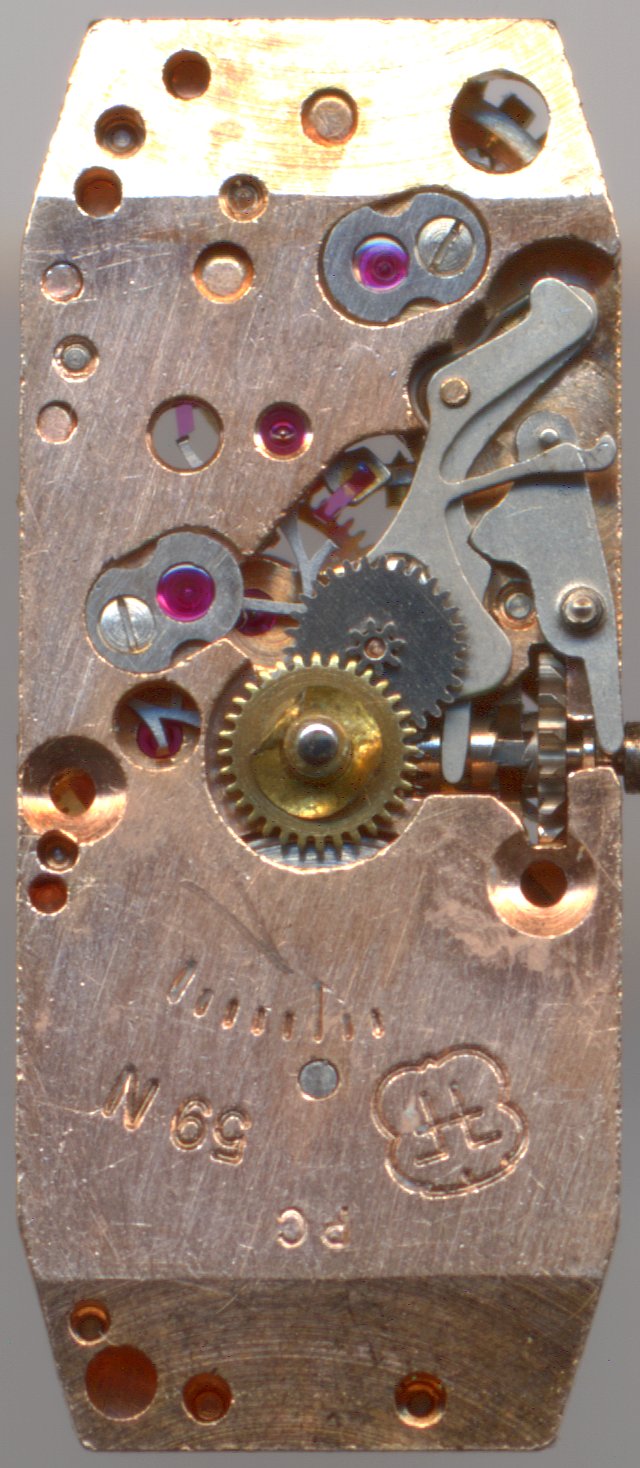

FHF 59N dial side

FHF 59N dial side

Timegrapher result


crown right (12 up)

crown right (12 up)

crown up (3 up)

crown up (3 up)

crown left (6 up)

crown left (6 up)

crown down (9 up)

crown down (9 up)

dial up

dial up

dial down

dial down

Technical data

Manufacturer:FHF
Caliber:59N
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Functions:hour, minute
A/h:18000
Size:3 3/4''' (measured: 9,0 x 21,0mm)
Literature: Flume: K2 -

Usage gallery

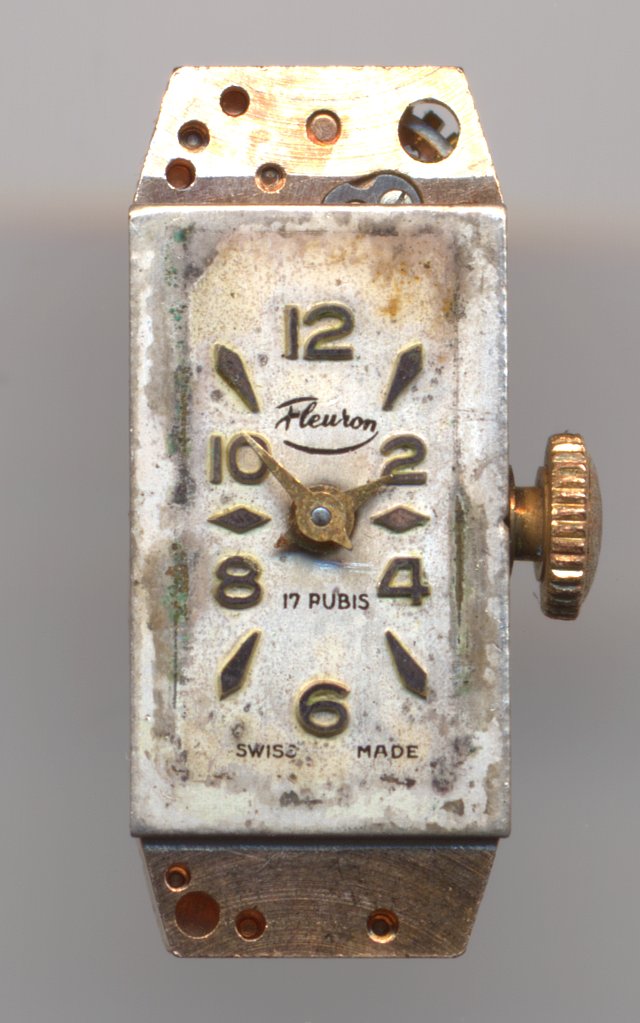

Fleuron gents watch  (dial only)

Fleuron gents watch (dial only)

Links

This movement was donated by Harald Hoeber. Thank you very much!
