FHF 64

Description

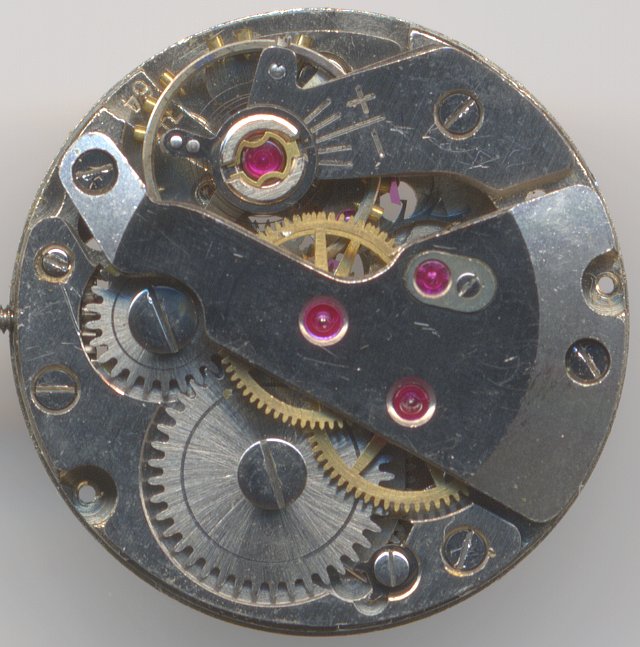

The ladies’ watch movement FHF 64 was released in the early sixties. On the one hand, it still uses the classical construction with direct driven minute wheel, on the other hand, it contains a directly driven center second hand. Because of this, the FHF 64 is rather thick, especially due to its small diameter. You can call this as a “double decker”, since the fourth- and minute wheel are stacked and hence the escapement wheel needs an extra long axle.

The remaining parts of the movement are, except the missing regulator arm for the screw balance, of good quality. It uses an Incabloc shock protection on the movement side, another, unknown shock protection system on the dial plate and then escapement wheel is beared in two cap jewels. The winding system is constructed as a yoke system, of course.

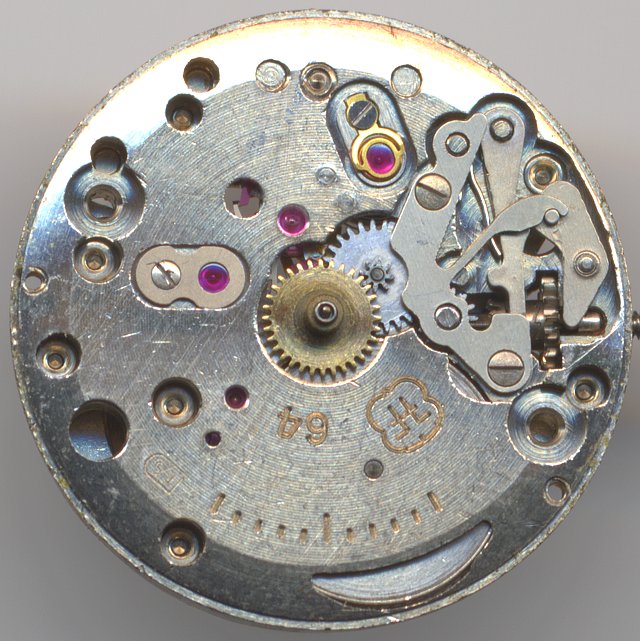

FHF 64 dial side

FHF 64 dial side

Technical data

Manufacturer:FHF
Caliber:64
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:18000
Size:8 3/4'''
Literature: Flume: 1962 3

Usage gallery

Seco (SE+CO) ladies' watch

Seco (SE+CO) ladies' watch

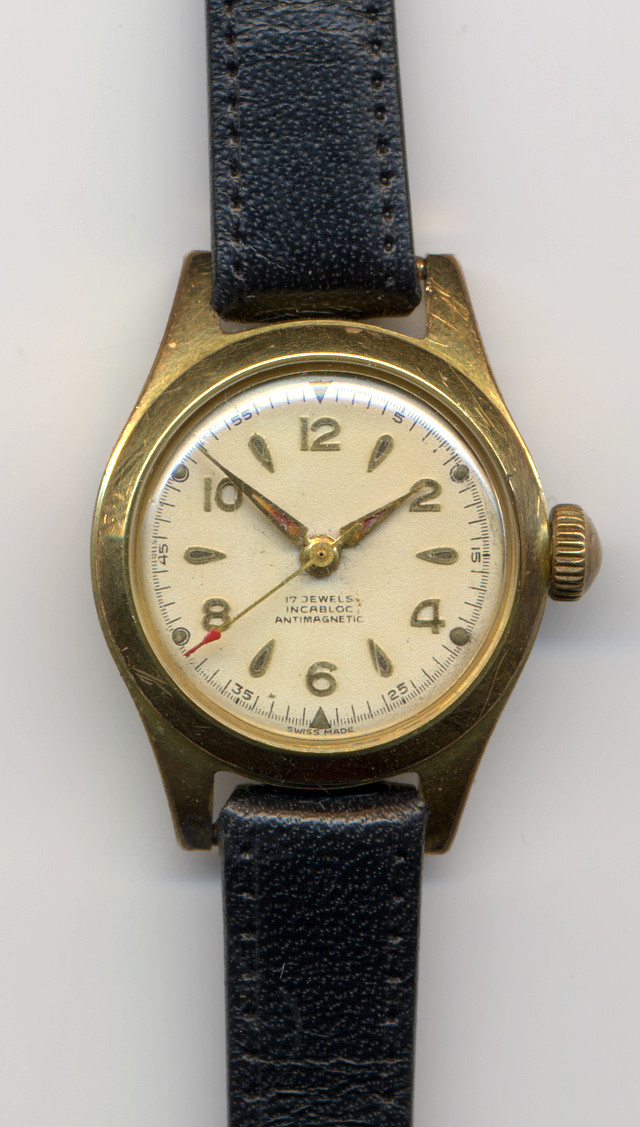

anonymous ladies' watch

anonymous ladies' watch

Links

One of the movements, the one in the anonymous ladies’ watch, is a kind donation of the Ristow family. Thank you very much for supporting the movement archive!
